2012 Nissan-Datsun Altima BaseFACTORY OEM SERVICE PROCEDURE

Engine Control System: Wiring Diagram

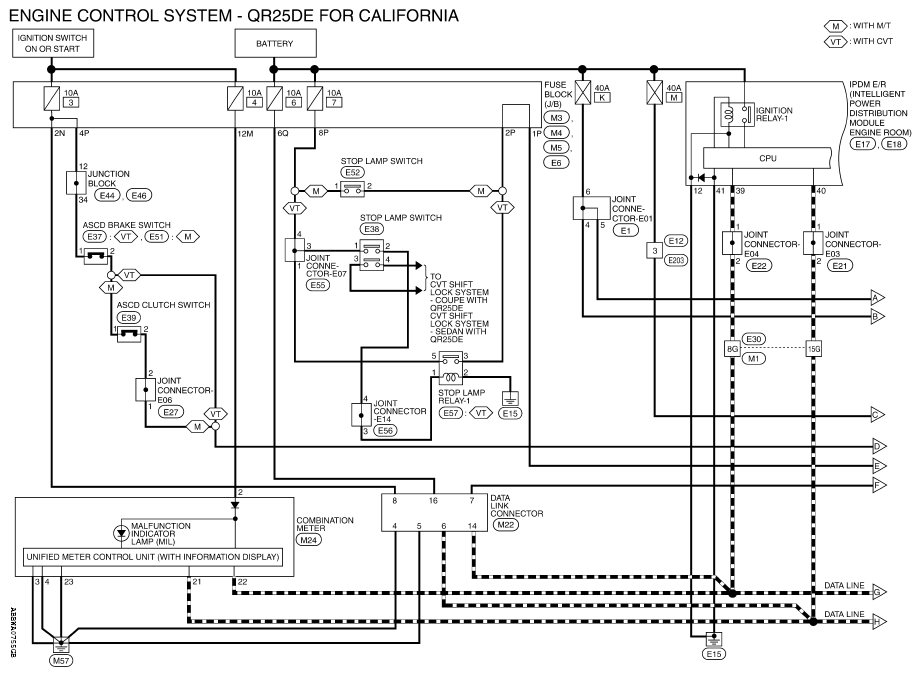

Fig 1: Engine Control System - Wiring Diagram (QR25DE For California) (1 Of 8)
G08112301Courtesy of NISSAN NORTH AMERICA, INC.
