Ignition Timing

Any of following two methods may be used.

Method A

1. Attach timing light to loop wire (1) as shown in the figure.
   • <= : Vehicle front

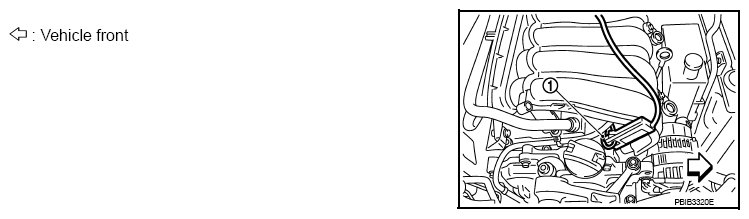

   Fig 1: Location Of Loop Wire Of Timing Light

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Check ignition timing.

• Timing indicator (1)

Method B

1. Remove No. 4 ignition coil (1).
   • <=: Vehicle front
   Fig 3: Location Of Ignition Coil

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Connect No. 4 ignition coil (1) and No. 4 spark plug with suitable high-tension wire (A) as shown in the figure, and attach timing light clamp (B) to this wire.
   • <= : Vehicle front
   Fig 4: Connecting No 4 Ignition Coil And No 4 Spark Plug Using High-Tension Wire

   Courtesy of NISSAN MOTOR CO., U.S.A.
