ID Registration With Transmitter Activation Tool
- With the ignition switch in OFF position, connect CONSULT scan tool to the Data Link Connector (DLC). Turn ignition switch to ON position.
- Display "WORK SUPPORT" screen, and select "ID REGIST".

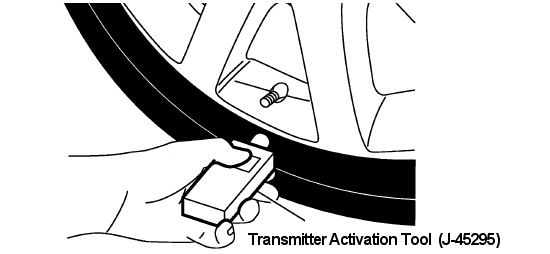

- With the Transmitter Activation Tool (J-45295) pushed against the left front tire air-valve, press the button for 5 seconds. See Fig 1.
- Register the IDs in the order specified: Left Front, Right Front, Right Rear, Left Rear.NOTE: Be sure to register the sensor IDs in the specified order, or the self-diagnostic results display will not function properly.
- After completing all ID registrations, press "END" to complete the procedure.
As each sensor ID is registered, the hazard warningl lights flash twice and the scan tool indicator light changes from red to green.
