2008 Nissan-Datsun Sentra SLFACTORY OEM SERVICE PROCEDURE

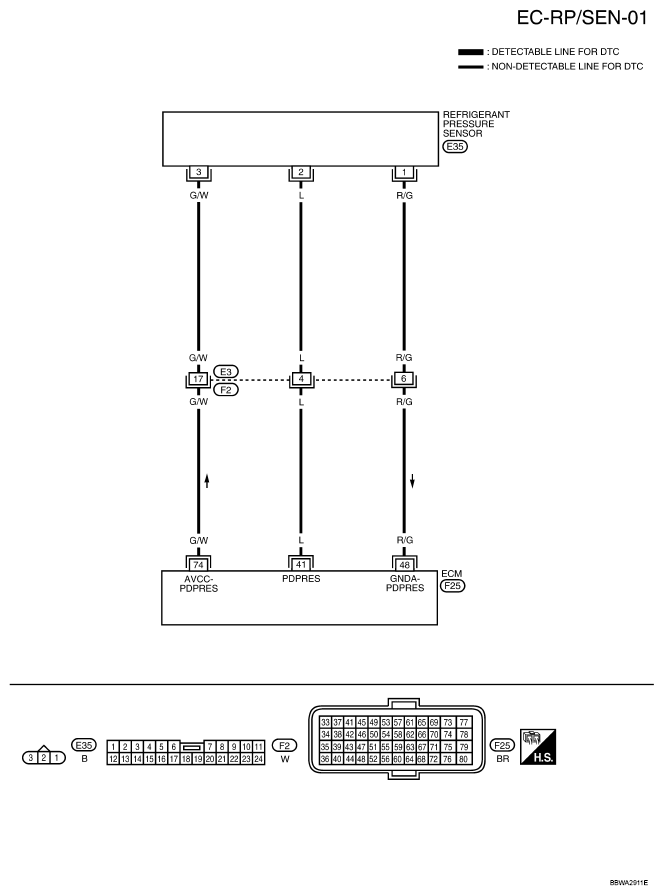

Refrigerant Pressure Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
TERMINAL ITEM CONDITION CHART
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 41 | L | Refrigerant pressure sensor | [Engine is running]
|
1.0 - 4.0V |
| 48 | R/G | Sensor ground (Refrigerant pressure sensor) |
[Engine is running]
|
Approximately 0V |
| 74 | G/W | Sensor power supply (Refrigerant pressure sensor) |
[Ignition switch: ON] | Approximately 5V |
