Refer to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS PATHFINDER-->.

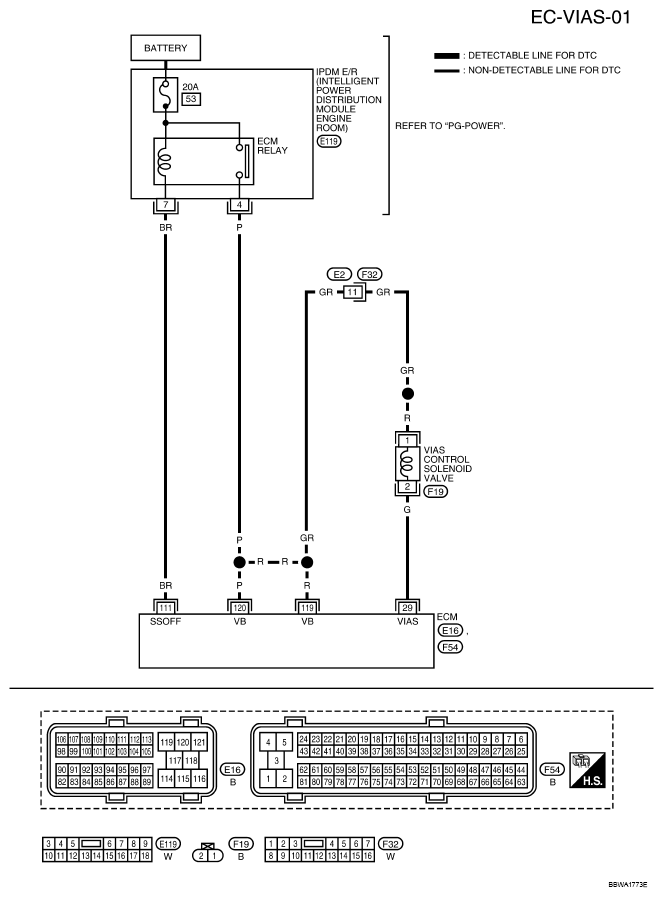

Fig 1: Identifying Wiring Diagram - EC-VIAS-01

Courtesy of NISSAN NORTH AMERICA, INC.

Specification data are reference values and are measured between each terminal and ground.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.

SPECIFICATION DATA AND REFERENCE VALUES CHART

TERMINAL NO.	WIRE COLOR	ITEM	CONDITION	DATA (DC Voltage)
29	G	VIAS control solenoid valve	[Engine is running] Idle speed	BATTERY VOLTAGE (11 - 14V)
29	G	VIAS control solenoid valve	[Engine is running] Engine speed: Between 2, 200 and 3, 300 rpm.	0 - 1.0V
111	BR	ECM relay (Self shut-off)	[Engine is running] [Ignition switch: OFF] For a few seconds after turning ignition switch OFF	0 - 1.5V
111	BR	ECM relay (Self shut-off)	[Ignition switch: OFF] More than a few seconds passed after turning ignition switch OFF	BATTERY VOLTAGE (11 - 14V)
119 120	R P	Power supply for ECM	[Ignition switch: ON]	BATTERY VOLTAGE (11 - 14V)
