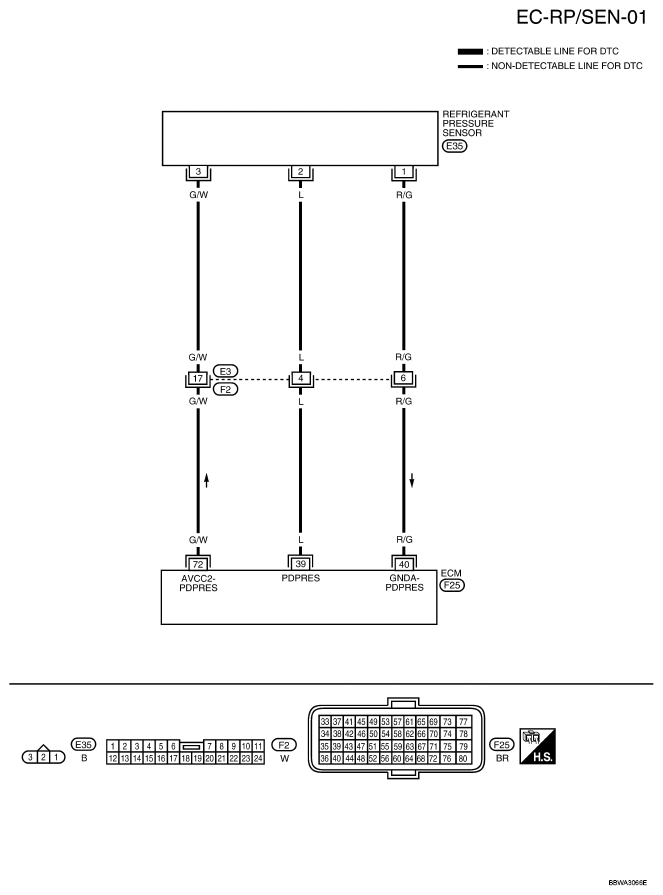

Refrigerant Pressure Sensor: Wiring Diagram
Specification data are reference values and are measured between each terminal and ground.
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 39 | L | Refrigerant pressure sensor | [Engine is running]
|
1.0 - 4.0V |
| 40 | R/G | Sensor ground (Refrigerant pressure sensor) |
[Engine is running]
|
Approximately 0V |
| 72 | G/W | Sensor power supply (Refrigerant pressure sensor) |
[Ignition switch: ON] | Approximately 5V |
