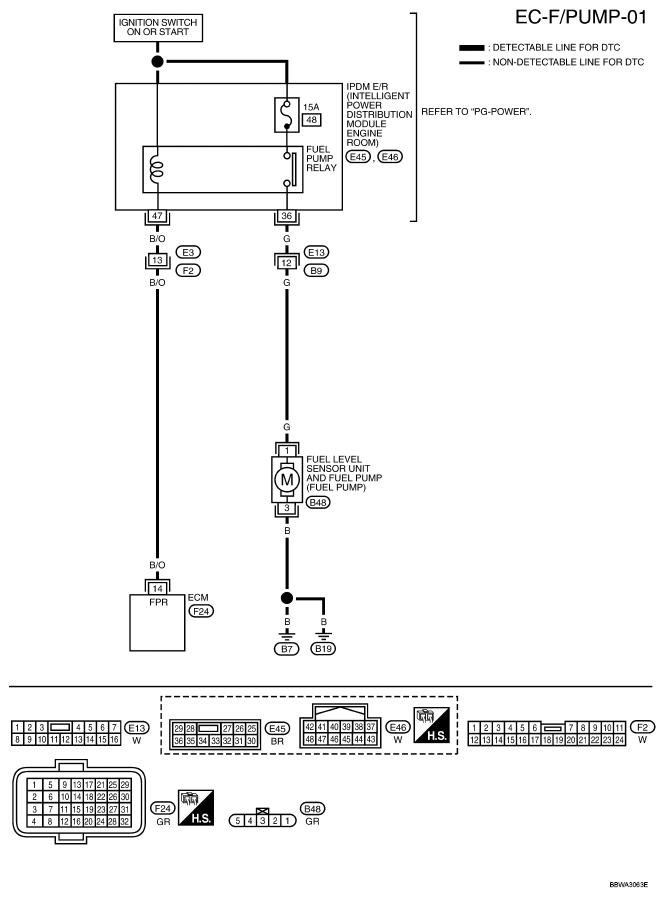

Fuel Pump: Wiring Diagram
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Specification data are reference values and are measured between each terminal and ground.
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 14 | B/O | Fuel pump relay | [Ignition switch: ON]
[Engine is running] |
0 - 1.0V |
[Ignition switch: ON]
|
BATTERY VOLTAGE (11 - 14V) |
