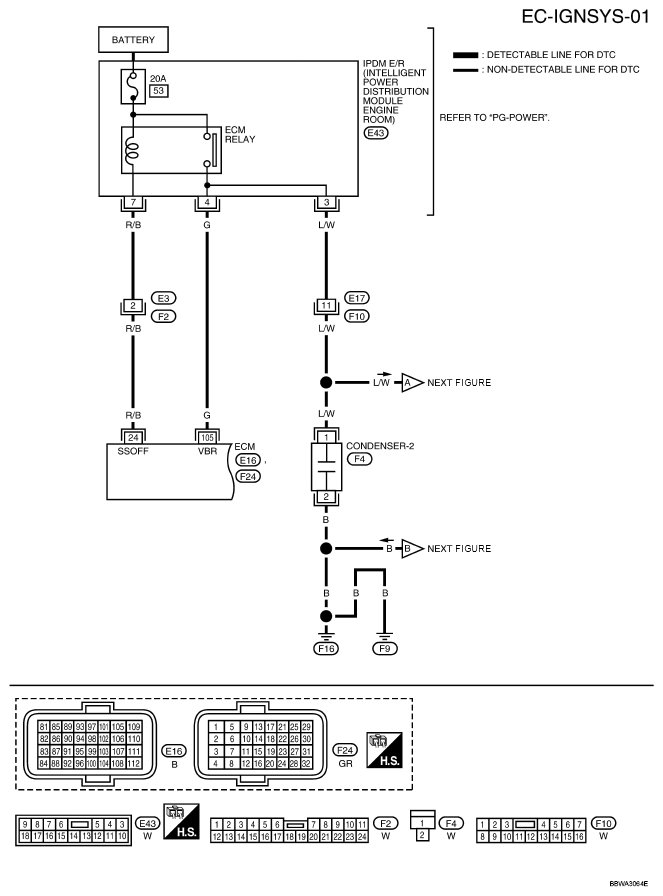

Ignition Signal: Wiring Diagram
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Specification data are reference values and are measured between each terminal and ground.
| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 24 | R/B | ECM relay (Self shut-off) | [Engine is running] [Ignition switch: OFF]
|
0 - 1.0V |
[Ignition switch: OFF]
|
BATTERY VOLTAGE (11 - 14V) | |||
| 105 | G | Power supply for ECM | [Ignition switch: ON] | BATTERY VOLTAGE (11 - 14V) |
For PG, go to POWER SUPPLY, GROUND & CIRCUIT ELEMENTS .
Specification data are reference values and are measured between each terminal and ground. Pulse signal is measured by CONSULT-III.

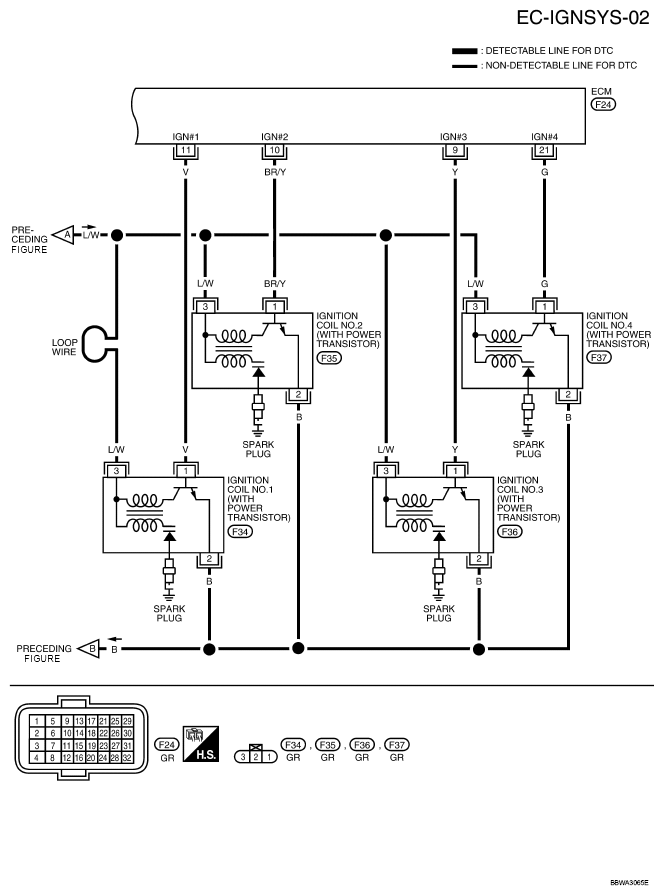

| TERMINAL NO. | WIRE COLOR | ITEM | CONDITION | DATA (DC Voltage) |
|---|---|---|---|---|
| 9 10 11 21 |
Y BR/Y V G |
Ignition signal No. 3 Ignition signal No. 2 Ignition signal No. 1 Ignition signal No. 4 |
[Engine is running]
|
|
[Engine is running]
|
||||
| *: Average voltage for pulse signal (Actual pulse signal can be confirmed by oscilloscope.) | ||||
