2008 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Preliminary Check

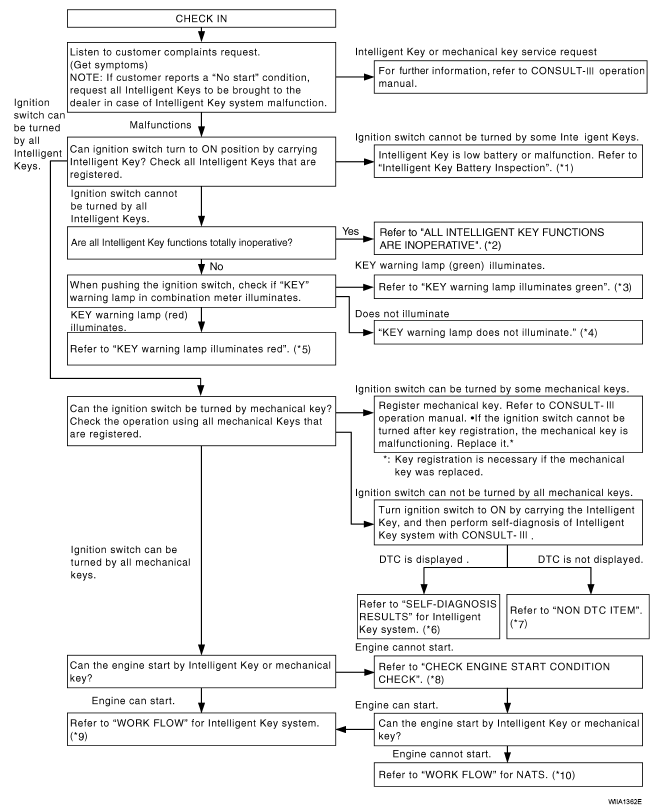

Fig 1: Trouble Diagnosis Flow Chart (1 Of 2)
G04927643Courtesy of NISSAN MOTOR CO., U.S.A.
TROUBLE DIAGNOSIS FLOW CHART REFERENCES (1 OF 2)

*1. INTELLIGENT KEY BATTERY REPLACEMENTΒ
*2. TROUBLE DIAGNOSIS SYMPTOM CHARTΒ
*3. TROUBLE DIAGNOSIS SYMPTOM CHARTΒ
*4. KEY WARNING LAMP DOES NOT ILLUMINATEΒ
*5. TROUBLE DIAGNOSIS SYMPTOM CHARTΒ
*6. CONSULT-III FUNCTION (INTELLIGENT KEY)Β
*7. KEY WARNING LAMP DOES NOT ILLUMINATEΒ
*8. KEY WARNING LAMP DOES NOT ILLUMINATEΒ
*9. WORK FLOWΒ
*10. WORK FLOWΒ
