Stop Lamp Switch
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

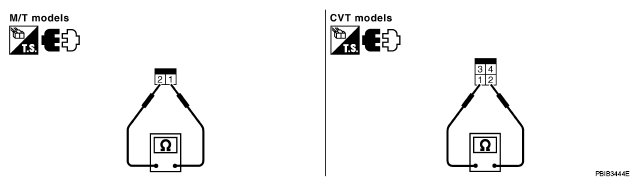

- Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
CONTINUITY CHARTCondition Continuity Brake pedal: Fully released. Should not exist. Brake pedal: Slightly depressed. Should exist. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.
