2008 Nissan-Datsun Sentra Base, Automatic CVTFACTORY OEM SERVICE PROCEDURE
Valve Guide
VALVE GUIDE
| Unit: mm (in) | ||||
|---|---|---|---|---|
| Items | Standard part | Service part | ||
| Valve guide | Outer diameter | 9.523 - 9.534 (0.3749 - 0.3754) | 9.723 - 9.734 (0.3828 - 0.3832) | |
| Inner diameter (Finished size) | 5.500 - 5.518 (0.2165 - 0.2172) | |||
| Cylinder head valve guide hole diameter | 9.475 - 9.496 (0.3730 - 0.3739) | 9.675 - 9.696 (0.3809 - 0.3817) | ||
| Interference fit of valve guide | 0.027 - 0.059 (0.0011 - 0.0023) | |||
| Items | Standard | Limit | ||
| Valve guide clearance | Intake | 0.020 - 0.053 (0.0008 - 0.0021) | 0.1 (0.004) | |
| Exhaust | 0.030 - 0.063 (0.0012 - 0.0025) | |||

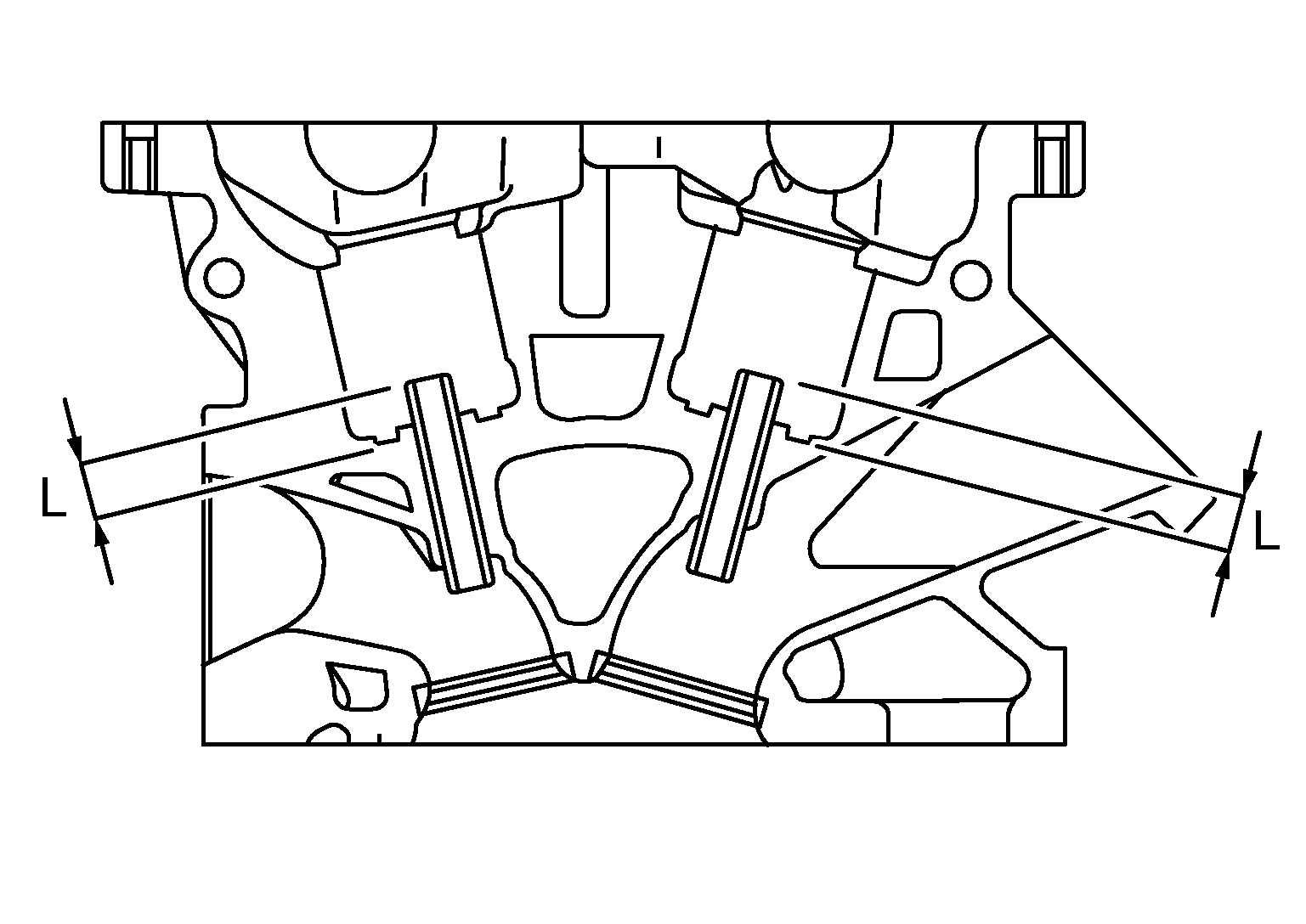

| Projection length "L" | 13.35 - 13.65 (0.526 - 0.537) | |||
