Power Supply and Ground Circuit Check
- CHECK POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect Intelligent Key unit connector.

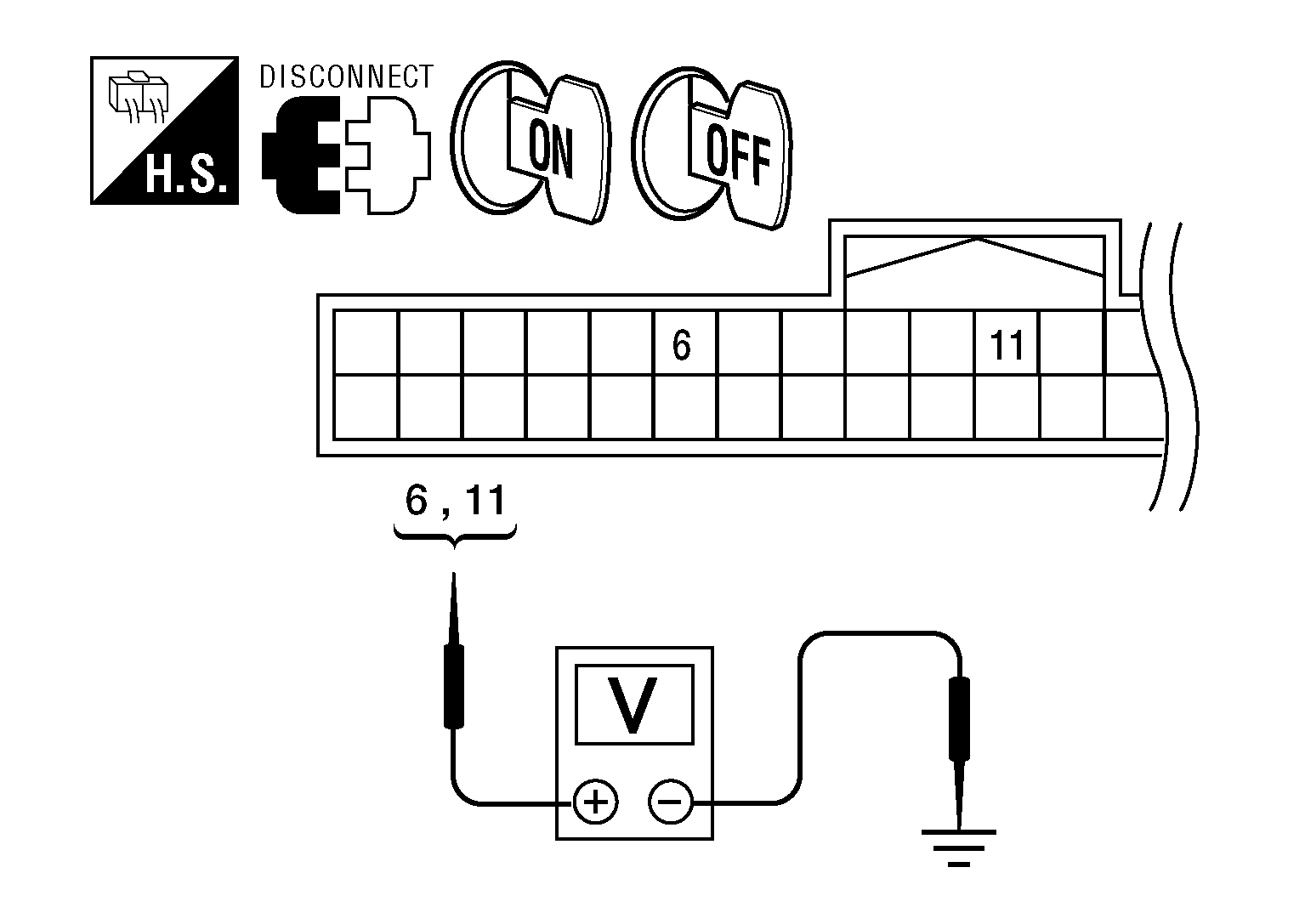

- Check voltage between Intelligent Key unit harness connector M42 terminals 6, 11 and ground.CONNECTOR TERMINAL VOLTAGE SPECIFICATION
Connector Terminals Ignition switch position M42 (+) (-) OFF ON 6 Ground 0V Battery voltage 11 Battery voltage Battery voltage
OK or NG
OK: GO TO 2.
NG: Repair or replace Intelligent Key power supply circuit.
- CHECK GROUND CIRCUIT

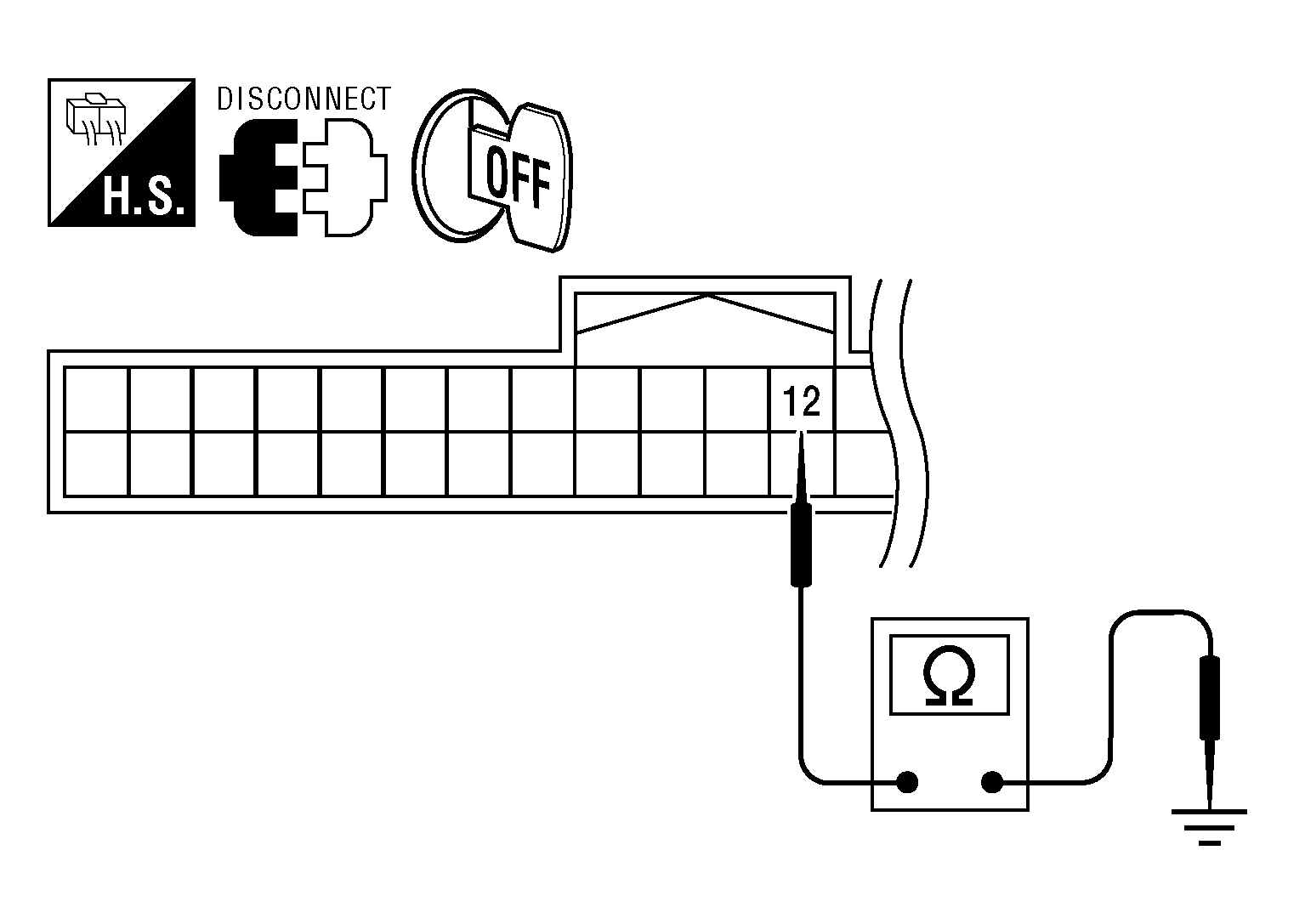

Check continuity between Intelligent Key unit harness connector M42 terminal 12 and ground.
12 - Ground : Continuity should exist.
OK or NG
OK: Power supply and ground circuits are OK.
NG: Repair or replace the Intelligent Key unit ground circuit.
