2007 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Adjustment of PNP switch
- Move selector lever to "N" position.
- Remove control cable from manual lever.

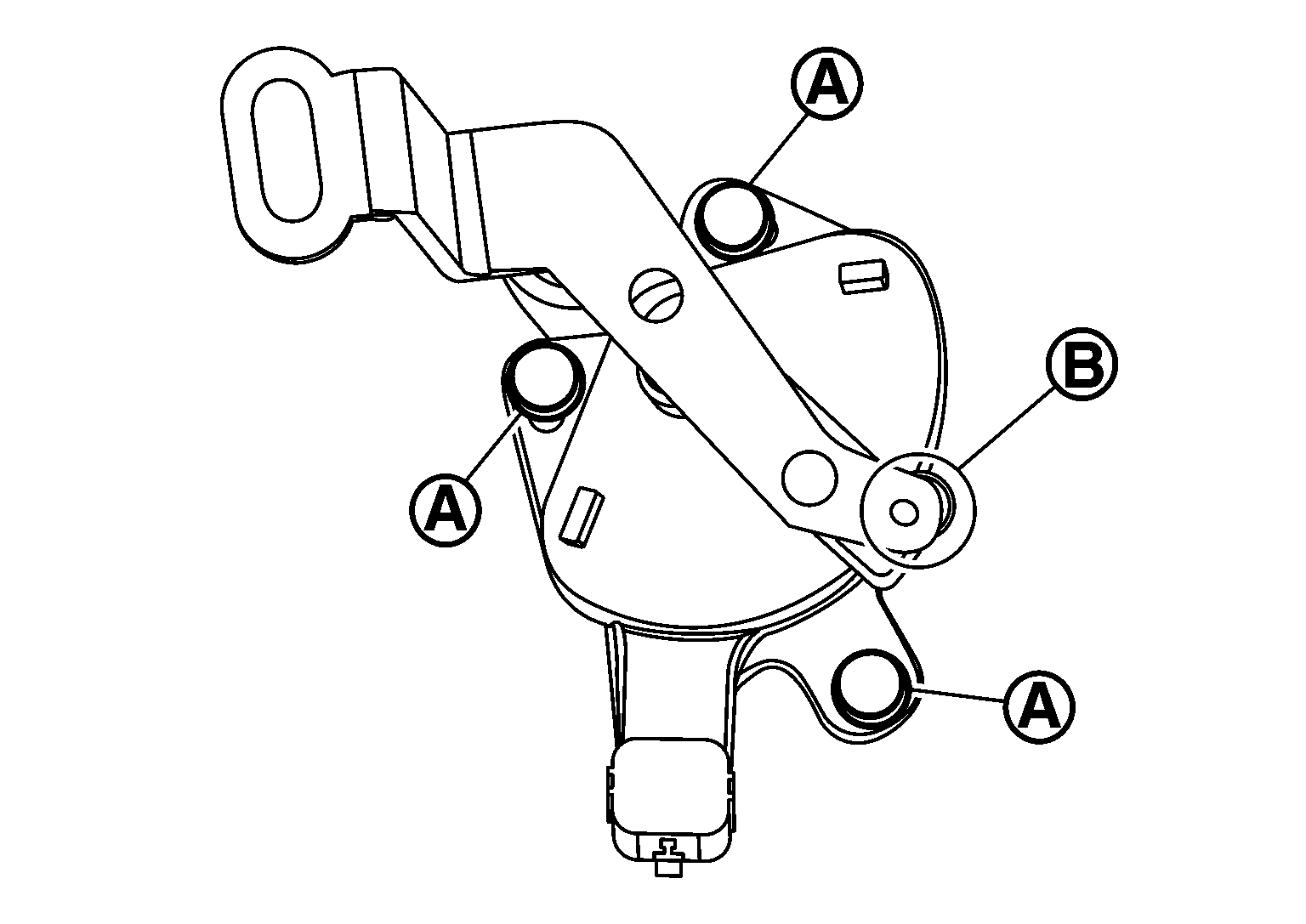

- Loosen PNP switch bolts (A). Insert a pin (ø4 mm) into the adjusting holes (B) on both PNP switch and manual lever for adjusting the position.
- Tighten PNP switch bolts (A).
PNP switch bolts : 5.9 N.m (0.60 kg-m, 52 in-lb)
- Connect control cable on manual lever (B). Refer to "ADJUSTMENT OF CVT POSITION ".
