2006 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Special Service Tools
The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.
SPECIAL SERVICE TOOLS DESCRIPTION
| Tool number (Kent-Moore No.) Tool name |
Description | |
|---|---|---|

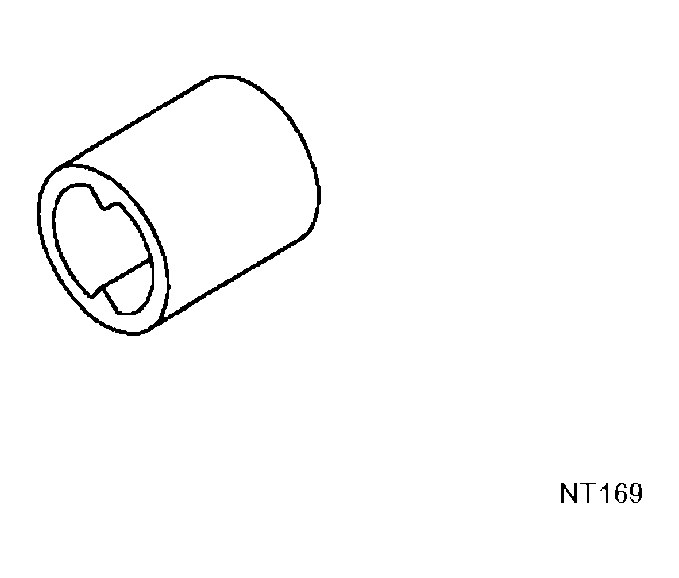

| KV48101100 (J26364) Torque adapter |
Measuring pinion rotating torque | |

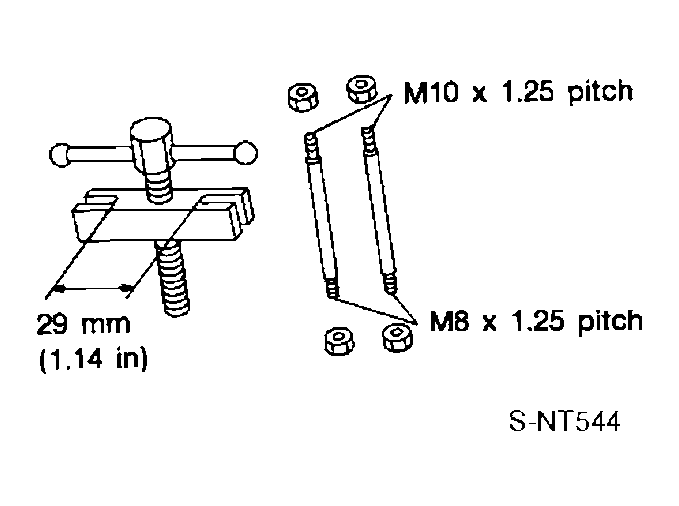

| ST27180001 (J25726-B) Steering wheel puller |
Removing steering wheel | |

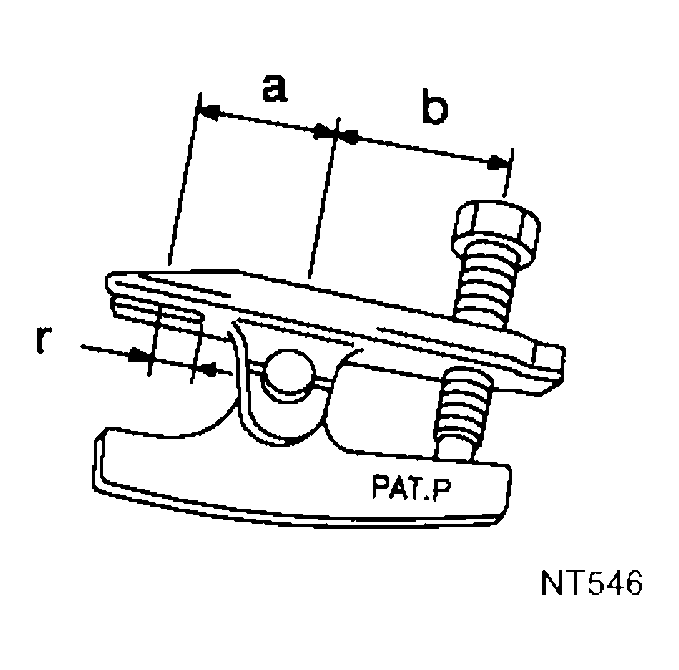

| HT72520000 (J25730-B) Ball joint remover |
Removing tie-rod and lower ball joint a: 33 mm (1.30 in) b: 50 mm (1.97 in) r: R11.5 mm (0.453 in) |
|

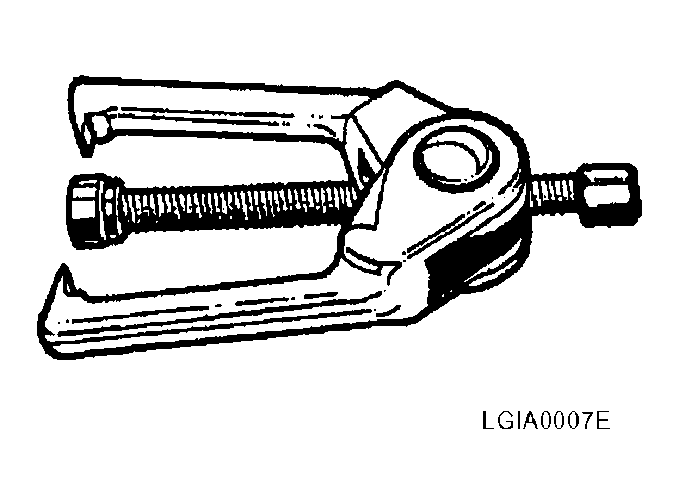

| (J-24319-B) Tie rod puller |
Remove outer tie rod | |

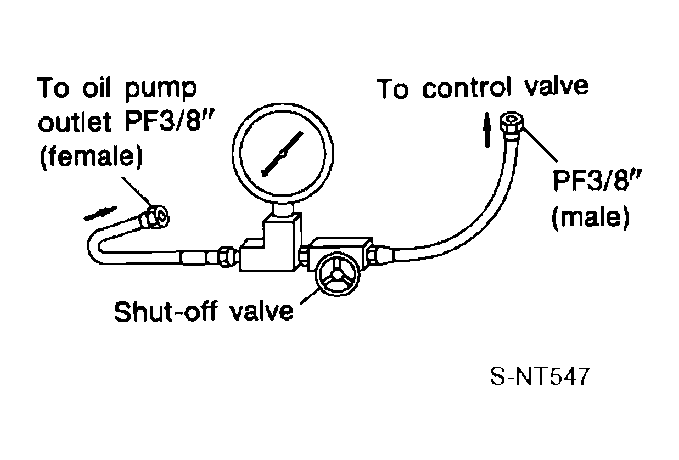

| KV48103500 (J26357 and J26357-10) Pressure gauge |
Measuring oil pressure | |

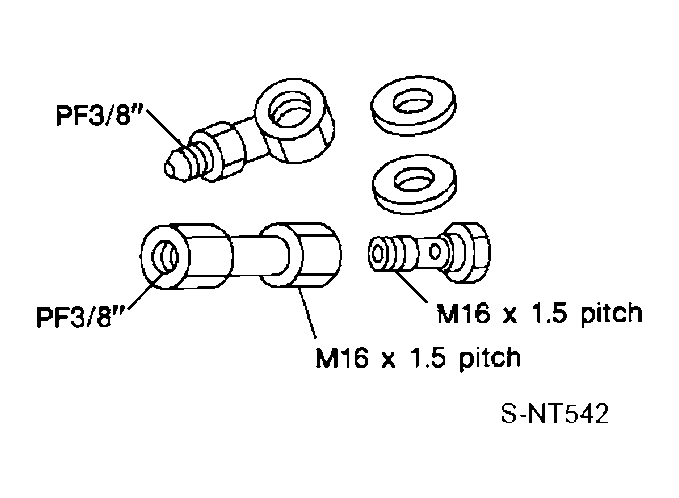

| KV48102500 (J33914) Pressure gauge adapter |
Measuring oil pressure | |

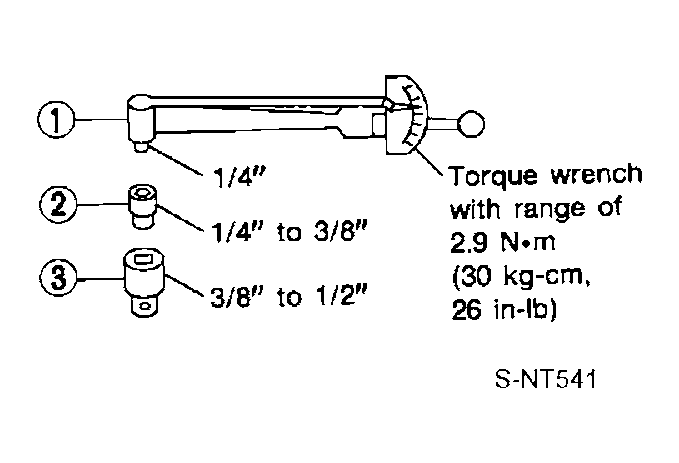

| ST3127S000 1 GG91030000 (See J25765-A) Torque wrench 2 HT62940000 (-) Socket adapter 3 HT62900000 (-) Socket adapter |
Measuring turning torque | |

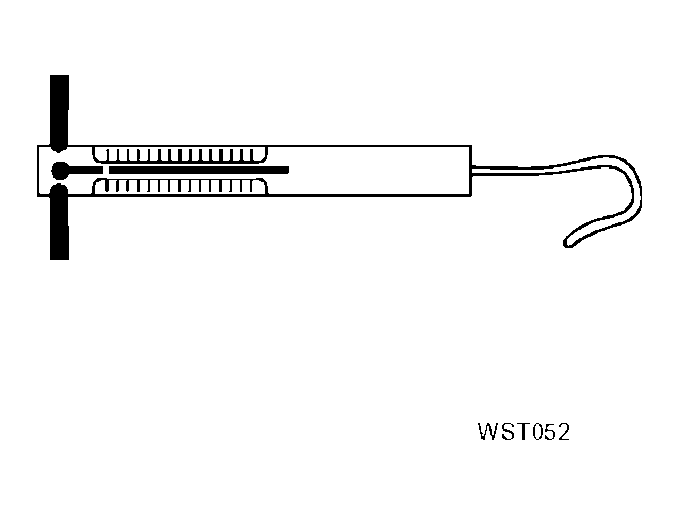

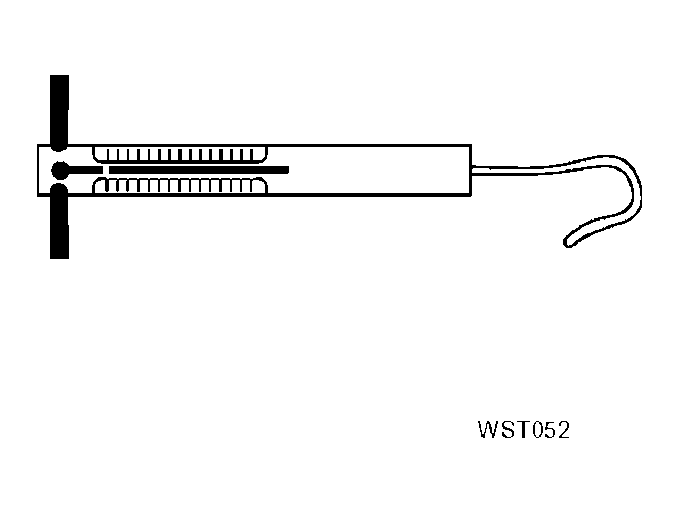

| (J44372) 5-60 Pound pull gauge |
Measuring steering wheel turning force | |
| (J44183-A) 20-100 Pound pull gauge |
Measuring rack sliding force | |

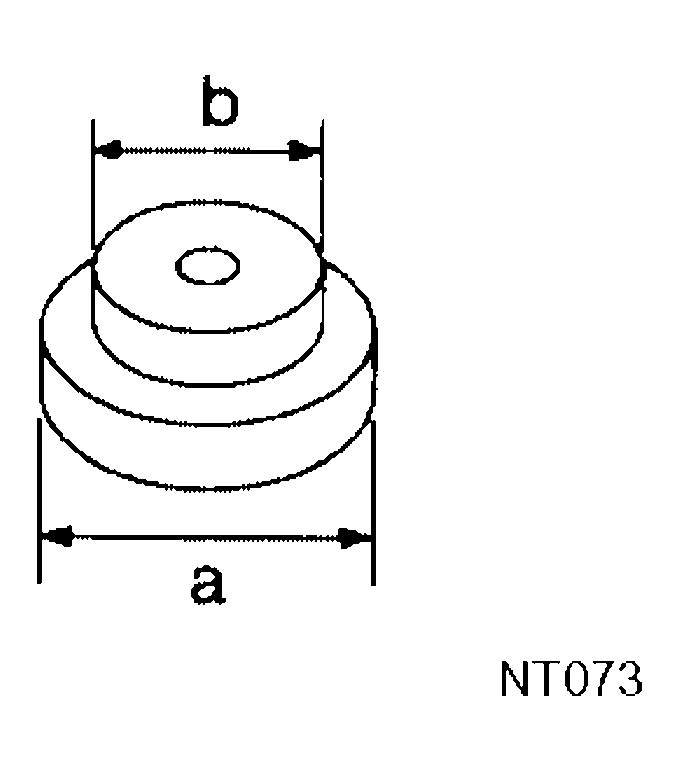

| ST35300000 (-) Drift |
Installing power steering pump oil seal a: 49 mm (1.93 in) dia . b: 41 mm (1.61 in) dia . |
|

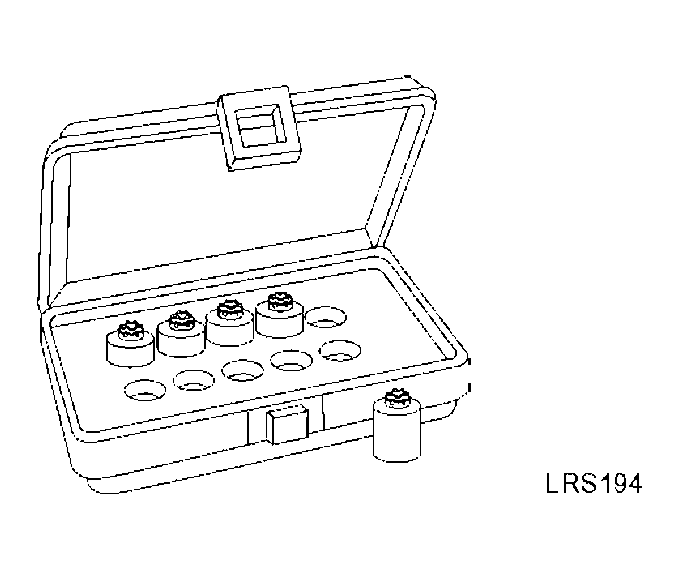

| (J-44615) Air Bag Master Key Set |
Removing and installing accessory air bag bolts. |
