Without CONSULT-II

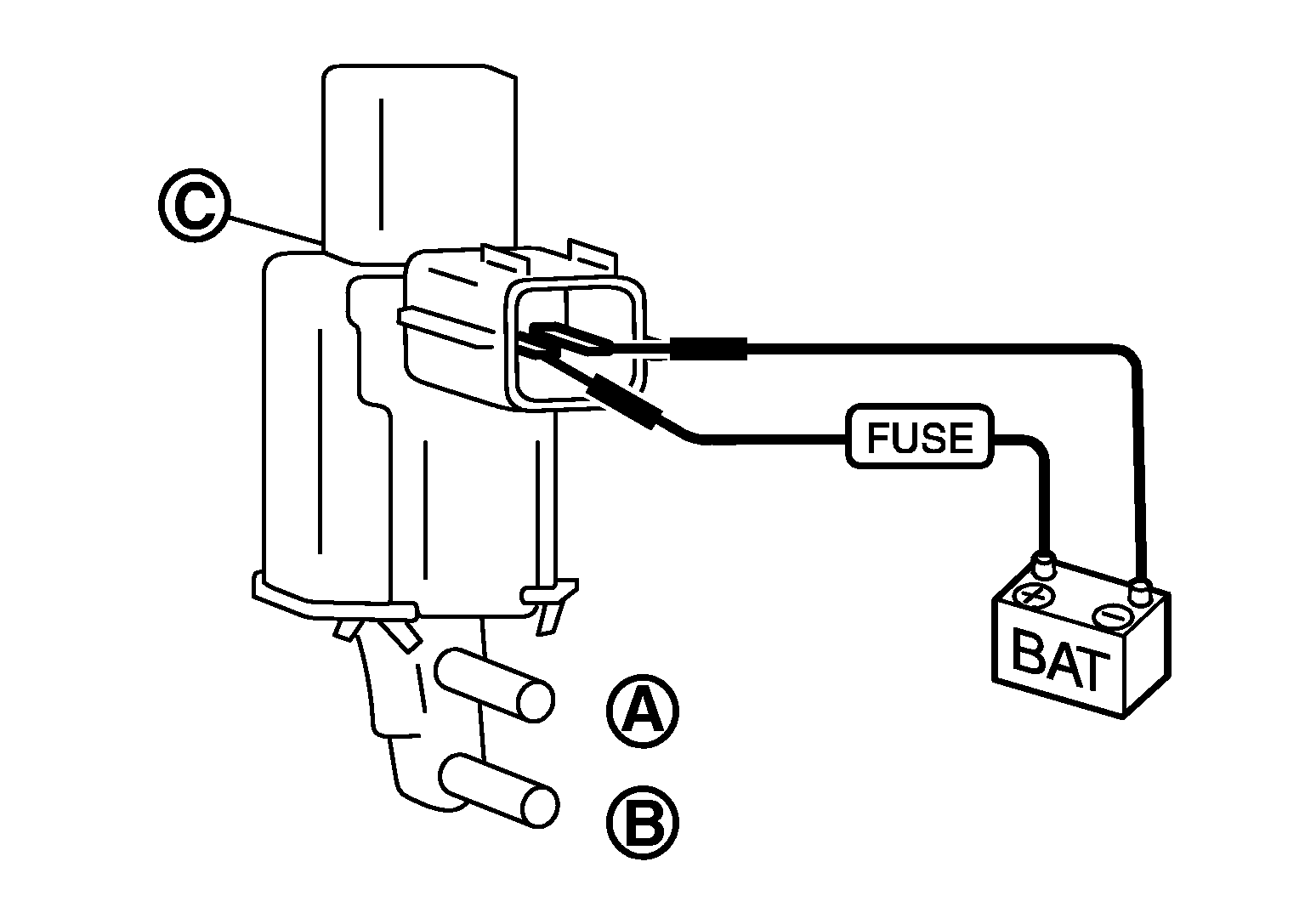

Check air passage continuity and operation delay time under the following conditions.
| Condition | Air passage continuity between A and B | Air passage continuity between A and C |
|---|---|---|
| 12V direct current supply between terminals 1 and 2 | Yes | No |
| No supply | No | Yes |
Operation takes less than 1 second.
