2006 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
With CONSULT-II
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.

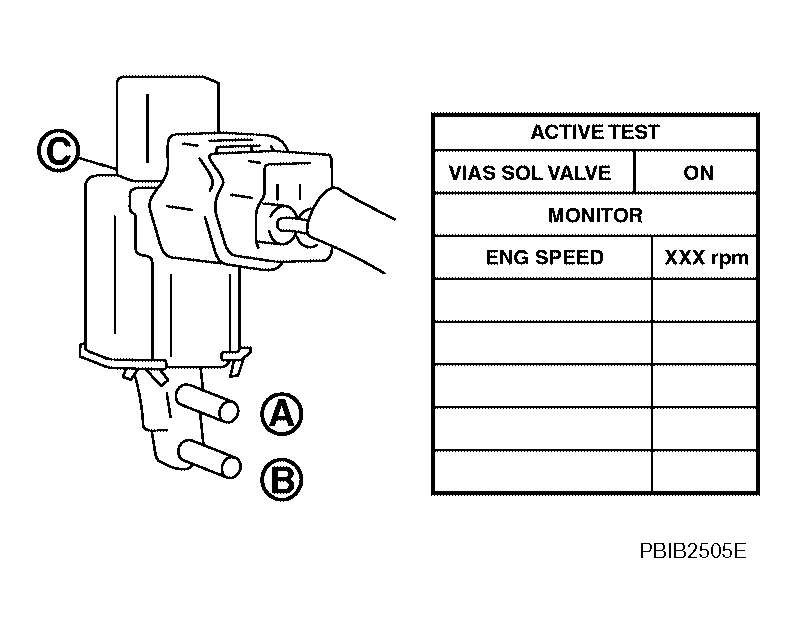

- Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
- Check air passage continuity and operation delay time under the following conditions.
VIAS SOL VALVE CONDITION & CONTINUITY SPECIFICATION
| Condition VIAS SOL VALVE |
Air passage continuity between A and B | Air passage continuity between A and C |
|---|---|---|
| ON | Yes | No |
| OFF | No | Yes |
Operation takes less than 1 second.
