CAUTION: Do the following procedure in the place where ventilation is good without the combustible.

Check resistance between ignition coil terminals as follows.

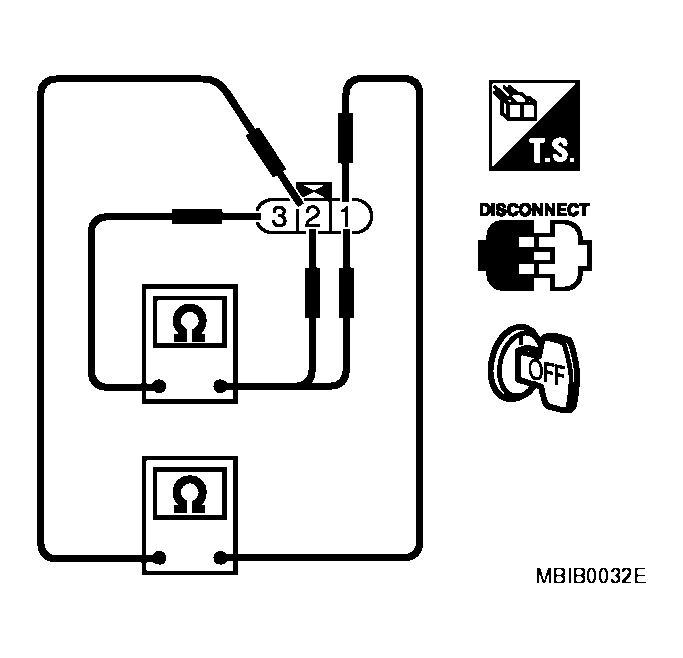

Fig 1: Checking Resistance Between Ignition Coil Terminals

Courtesy of NISSAN MOTOR CO., U.S.A.

TERMINAL RESISTANCE SPECIFICATION

If NG, Replace ignition coil with power transistor.
If OK, go to next step.
Turn ignition switch OFF.
Reconnect all harness connectors disconnected.
Remove fuel pump fuse in located in fuse box to release fuel pressure.
NOTE: Do not use CONSULT-II to release fuel pressure, or fuel pressure applies again during the following procedure.

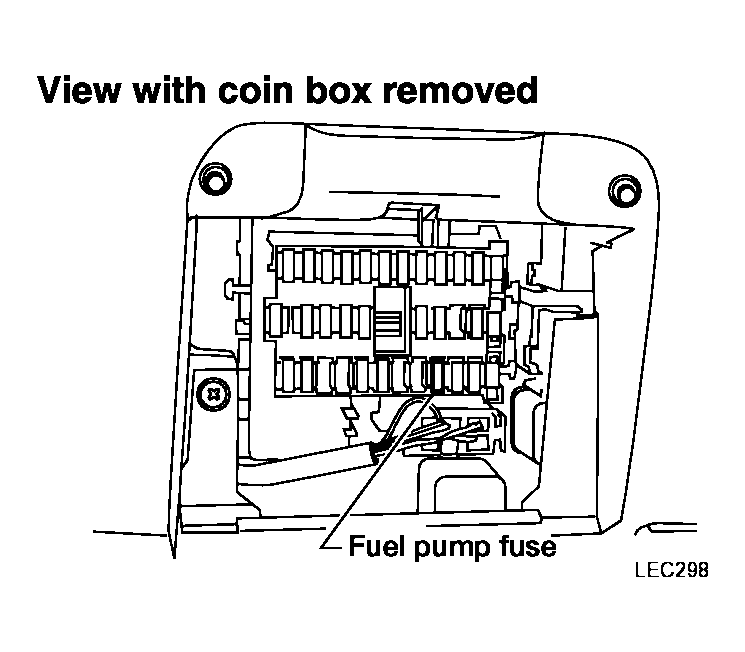

Fig 2: Identifying Fuel Pump Fuse

Courtesy of NISSAN MOTOR CO., U.S.A.

Start engine.
After engine stalls, crank it two or three times to release all fuel pressure.
Turn ignition switch OFF.
Remove ignition coil harness connectors to avoid the electrical discharge from the ignition coils.
Remove ignition coil and spark plug of the cylinder to be checked.
Crank engine for five seconds or more to remove combustion gas in the cylinder.
Connect spark plug and harness connector to ignition coil.
Fix ignition coil using a rope etc. with gap of 13 - 17 mm between the edge of the spark plug and grounded metal portion as shown in the figure.
Crank engine for about three seconds, and check whether spark is generated between the spark plug and the grounded part.
Spark should be generated.

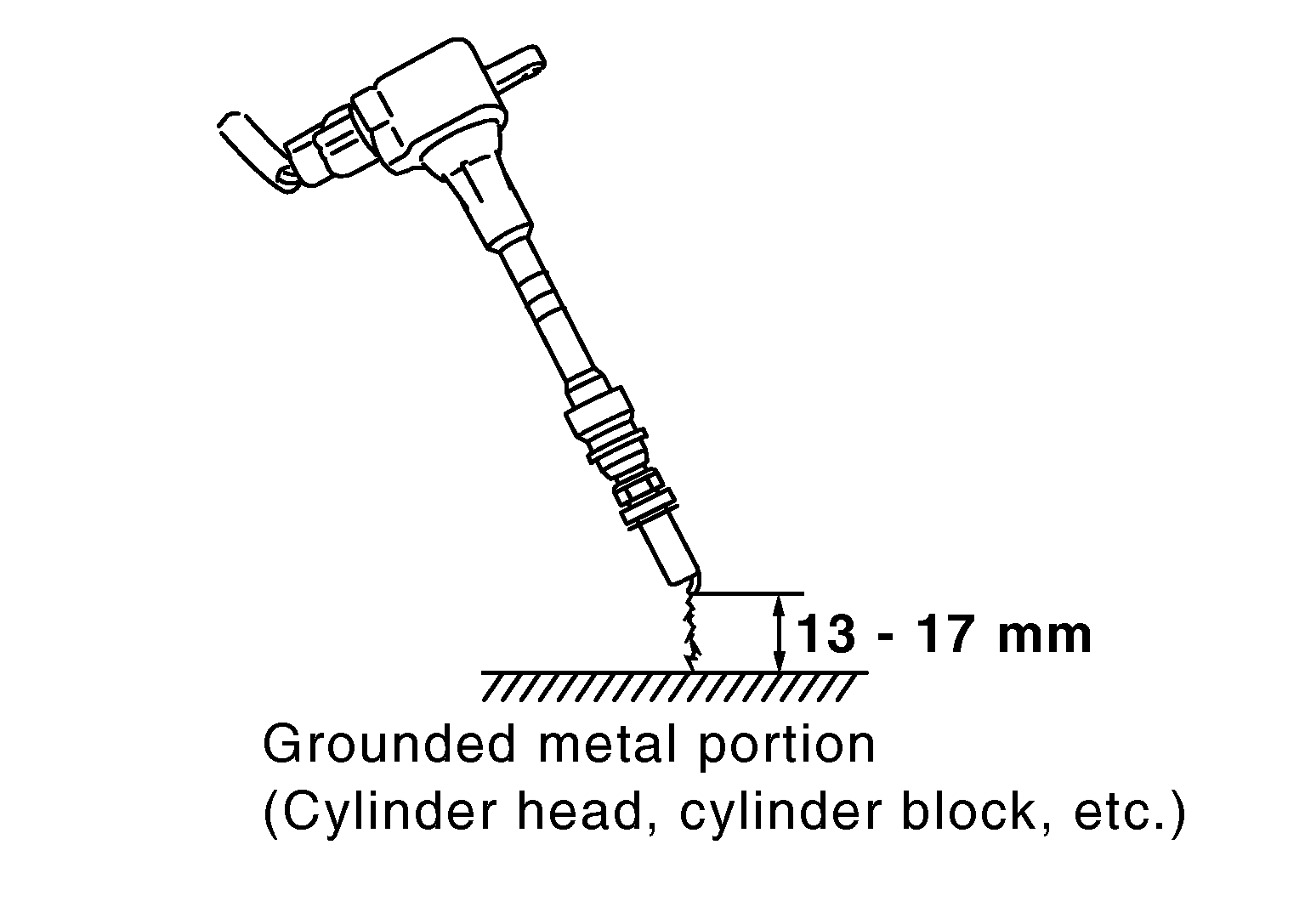

Fig 3: Checking For Spark Between Spark Plug And Grounded Metal On Engine
Courtesy of NISSAN MOTOR CO., U.S.A.
