Abs Actuator And Electric Unit: Notes

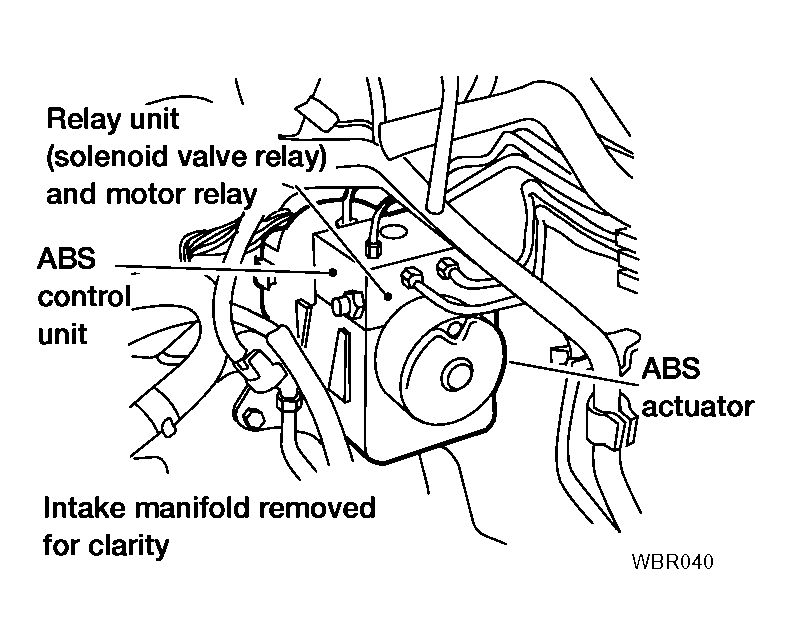

The ABS actuator and electric unit contains:
- An electric motor and pump
- Two relays
- Eight solenoid valves, each inlet and outlet for
- LH front
- RH front
- LH rear
- RH rear
- ABS control unit
This component controls the hydraulic circuit and increases, holds or decreases hydraulic pressure to all or individual wheels. The ABS actuator and electric unit is serviced as an assembly.
