2006 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Body (Alignment): Alignment: Notes
- All dimensions indicated in figures are actual ones.
- When using a tracking gauge, adjust both pointers to equal length. Then check the pointers and gauge itself to make sure there is no free play.
- When a measuring tape is used, check to be sure there is no elongation, twisting or bending.
- Measurements should be taken at the center of the mounting holes.
- An asterisk (*) indicates the measuring point value is the same on both sides.

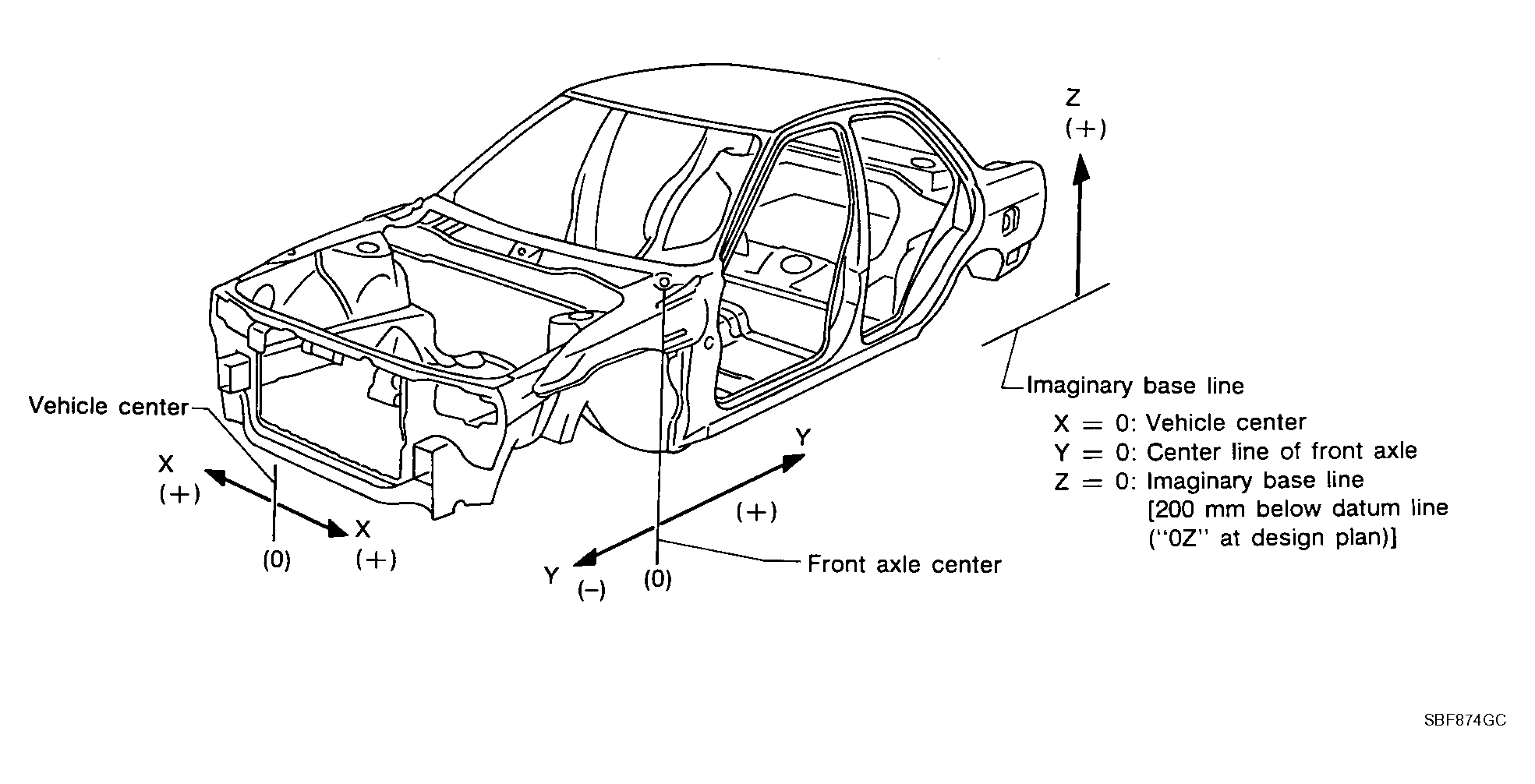

- The coordinates of the measurement points are the distances measured from the standard line of "X", "Y" and "Z".
