Inspection Procedure
- Turn ignition switch OFF.

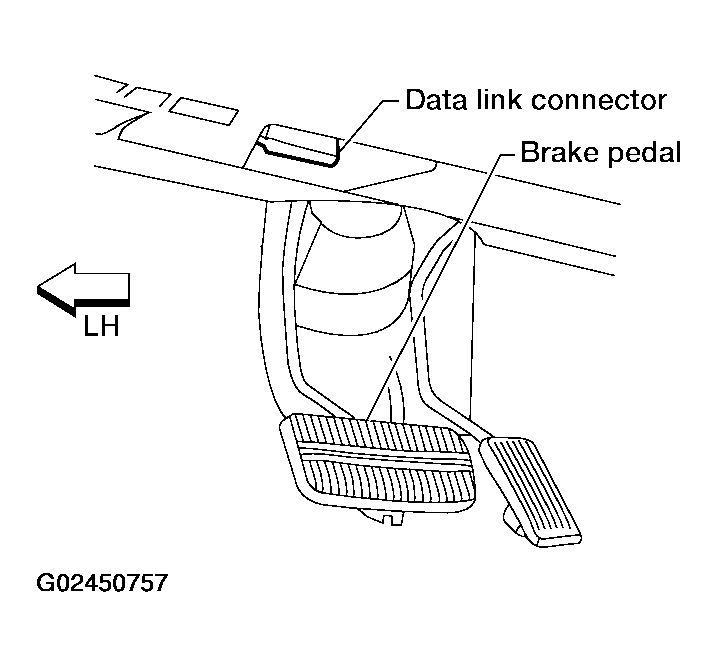

- Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel.
- Turn ignition switch ON.

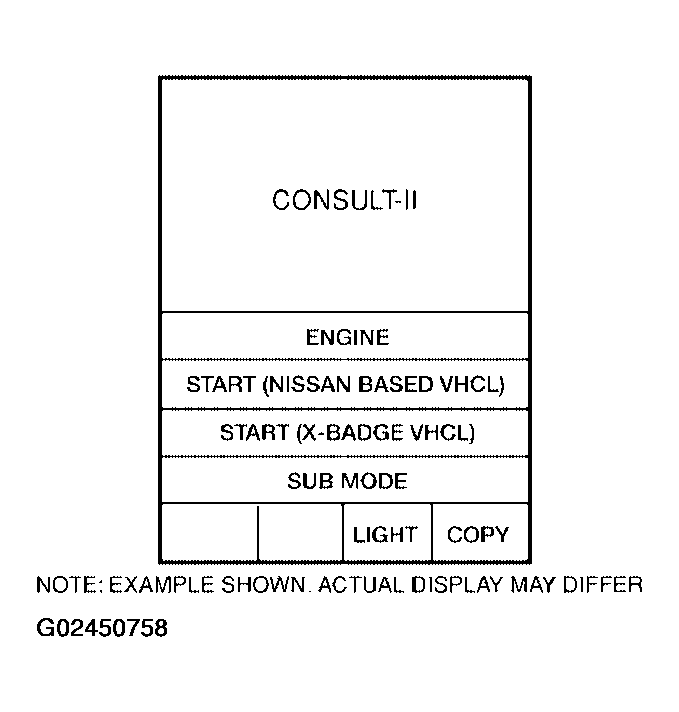

- Touch "START" (NISSAN BASED VHCL).

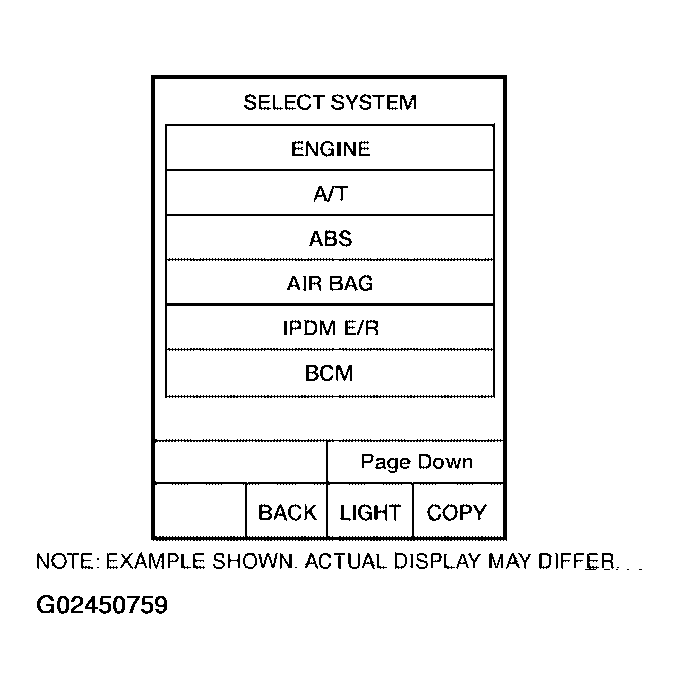

- Touch "ENGINE".
If "ENGINE" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

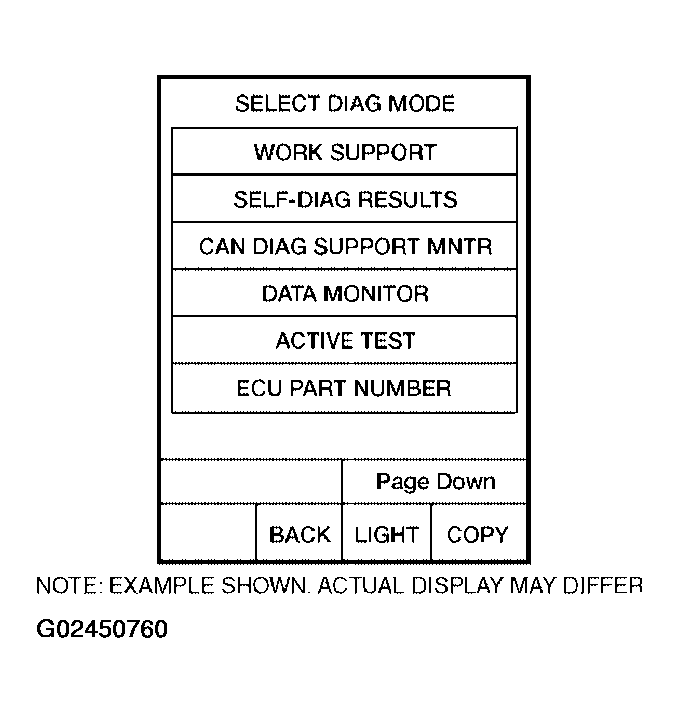

- Perform each diagnostic test mode according to each service procedure.
For further information, see the CONSULT-II Operation Manual.
