VIAS Control Solenoid Valve

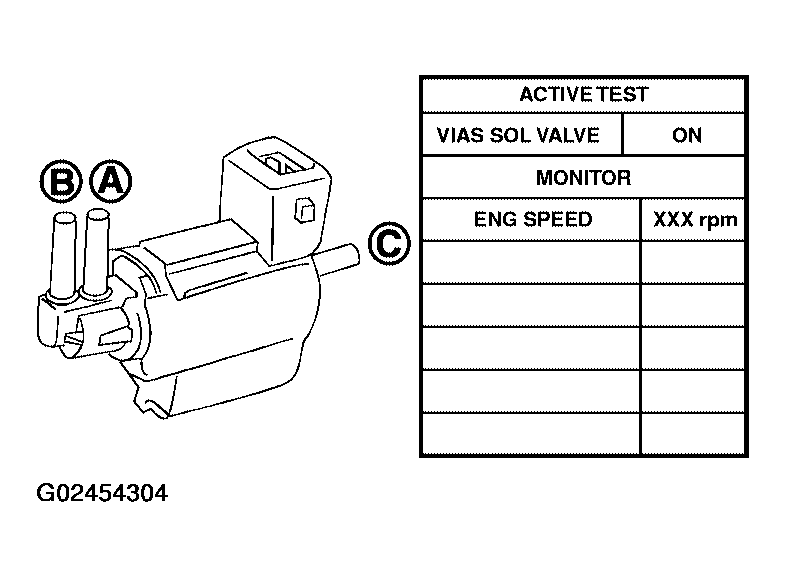

With CONSULT-II
- Reconnect harness connectors disconnected.
- Turn ignition switch ON.
- Perform "VIAS SOL VALVE" in "ACTIVE TEST" mode.
- Check air passage continuity and operation delay time under the following conditions.VIAS SOL VALVE CONDITION AND AIR PASSAGE CONTINUITY REFERENCE
Condition VIAS SOL VALVE Air passage continuity between A and B Air passage continuity between A and C ON Yes No OFF No Yes Operation takes less than 1 second.

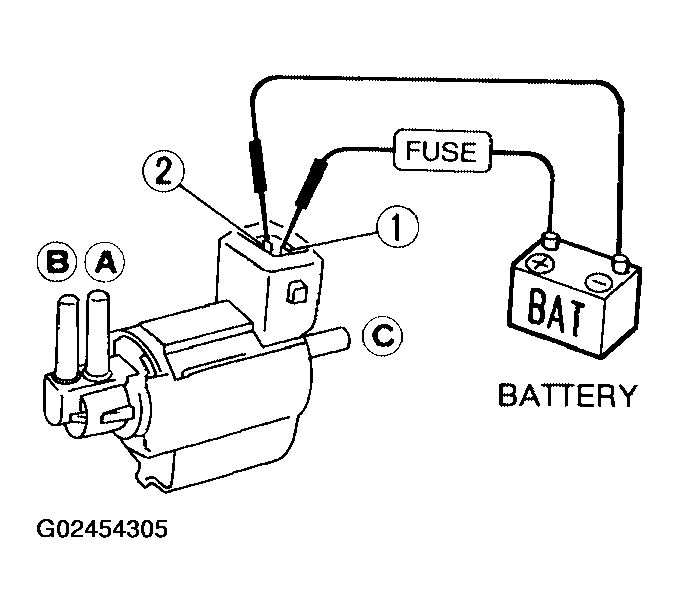

With GST
Check air passage continuity and operation delay time under the following conditions.
| Condition | Air passage continuity between A and B | Air passage continuity between A and C |
|---|---|---|
| 12V direct current supply between terminals 1 and 2 | Yes | No |
| No supply | No | Yes |
Operation takes less than 1 second.
