Diagnostic Procedure
- CHECK ENGINE START
Turn ignition switch OFF, and restart engine. Is engine running?
Yes or No
- CHECK OVERALL FUNCTION
With CONSULT-II

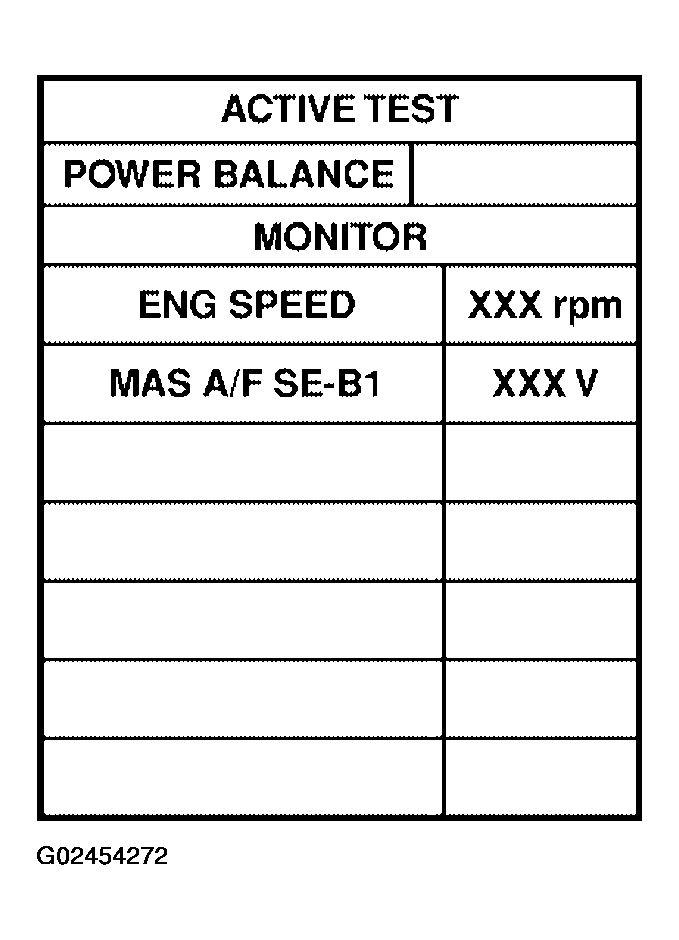

- Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
- Make sure that all circuits do not produce a momentary engine speed drop.
OK or NG
- OK : INSPECTION END
- NG : GO TO 12.
- CHECK OVERALL FUNCTION
Without CONSULT-II
- Let engine idle.
- Read the voltage signal between ECM terminals 61, 62, 80, 81 and ground with an oscilloscope.
- Verify that the oscilloscope screen shows the signal wave as shown below in Fig 2.NOTE: The pulse cycle changes depending on rpm at idle.
