Diagnostic Procedure
- CHECK OVERALL FUNCTION

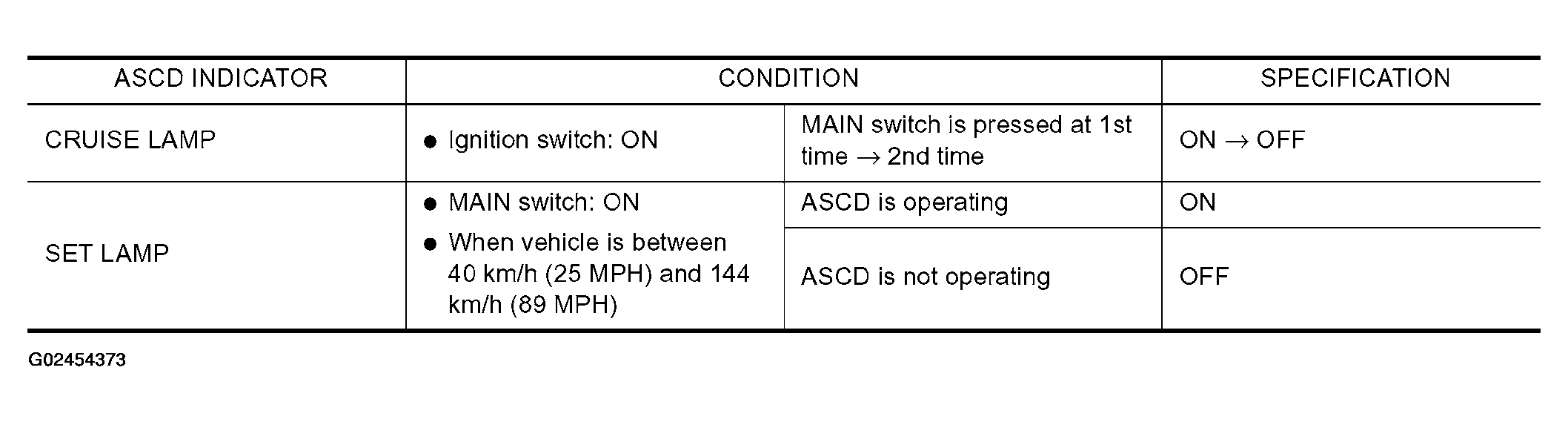

Check ASCD indicator under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : INSPECTION END
- NG : GO TO 2.
- CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
Yes or No
- Yes : Perform trouble diagnoses for DTC U1000, U1001, refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".
- No : GO TO 3.
- CHECK COMBINATION METER OPERATION
Does combination meter operate normally?
Yes or No
- Yes : GO TO 4.
- No : Check combination meter circuit. Refer to METER/GAUGE OPERATION AND ODO/TRIP METER SEGMENT CHECK IN DIAGNOSIS MODE .
- CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
- : INSPECTION END
