2005 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Data Monitor Procedure: Notes

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. Turn ignition switch OFF.
  2. Connect CONSULT-II and CONSULT-II CONVERTER to the data link connector.
  3. Turn ignition switch ON.
  4. Touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.

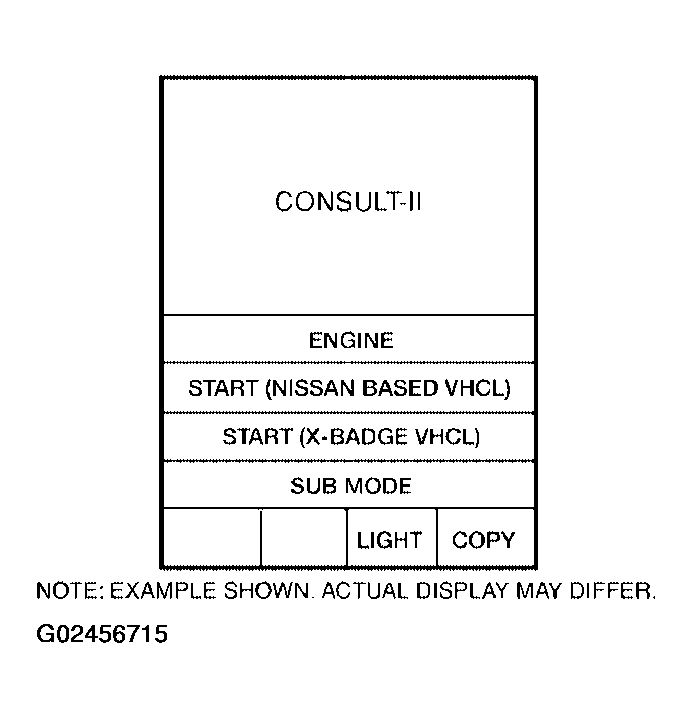

    Fig 1: CONSULT-II Display - START (NISSAN BASED VHCL)
    G02456715Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "ABS". If "ABS" is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

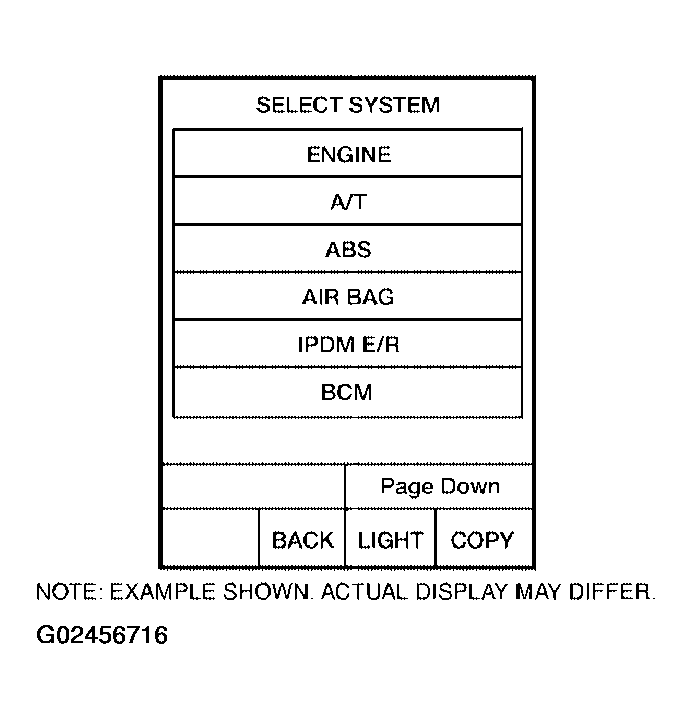

    Fig 2: CONSULT-II Display - SELECT SYSTEM
    G02456716Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "DATA MONITOR".

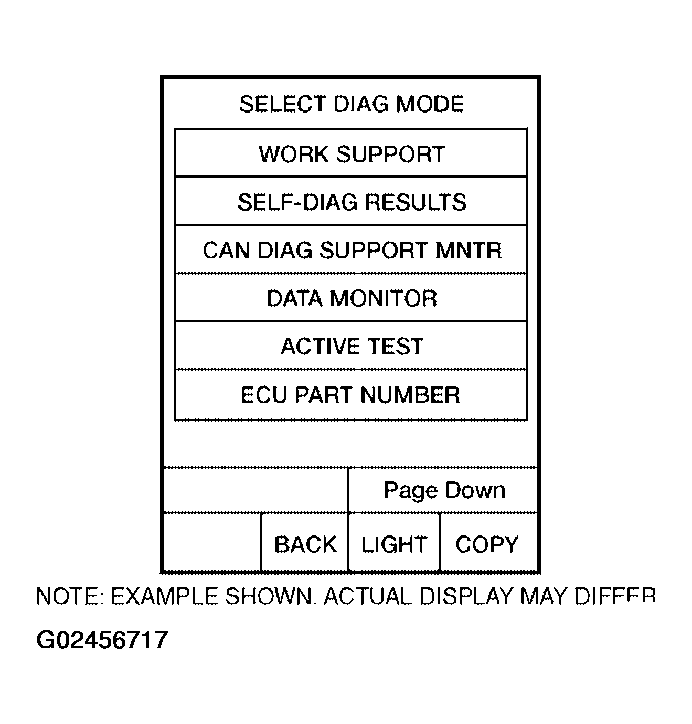

    Fig 3: CONSULT-II Display - SELECT DIAG MODE
    G02456717Courtesy of NISSAN MOTOR CO., U.S.A.
