2005 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Malfunction code No. 71

  1. INSPECTION START

    ABS actuator and electric unit power supply and ground circuit inspection

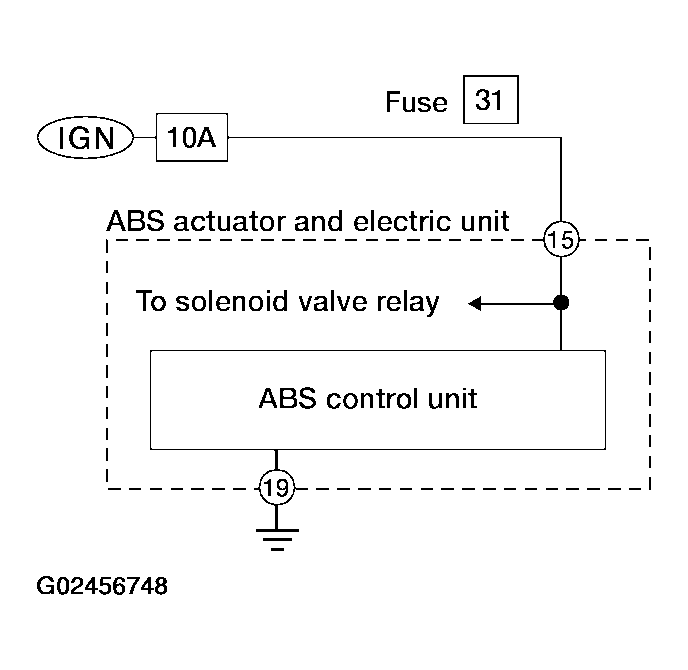

    Fig 1: ABS Actuator & Electric Unit Power Supply Diagram
    G02456748Courtesy of NISSAN MOTOR CO., U.S.A.
    • GO TO  2.
  2. CHECK CONNECTOR
    1. Disconnect ABS actuator and electric unit connector.

      Check terminals for damage or loose connection. Then reconnect connector.

    2. Carry out self-diagnosis again.

    Does warning lamp activate again?

    • Yes: GO TO  3.
    • No: Inspection End.
  3. CHECK ABS ACTUATOR AND ELECTRIC UNIT POWER SUPPLY CIRCUIT

    Check voltage. Refer to DIAGNOSTIC PROCEDURE .

    Does battery voltage exist when ignition switch is turned ON?

    • Yes: GO TO  4.
    • No: Check harness for open or short between ABS actuator and electric unit and fuse.
  4. SELF-DIAGNOSIS RESULT CHECK

    Check the self-diagnosis results.

    Is code No. 71 indicated again?

    • Yes: Replace ABS actuator and electric unit. Refer to ACTUATOR .
    • No: Inspect the system according to the code No.
