2005 Nissan-Datsun Sentra Base, AutomaticFACTORY OEM SERVICE PROCEDURE

ECM Relay

Apply 12V direct current between ECM relay terminals 1 and 2.

Check continuity between relay terminals 3 and 5, 6 and 7.

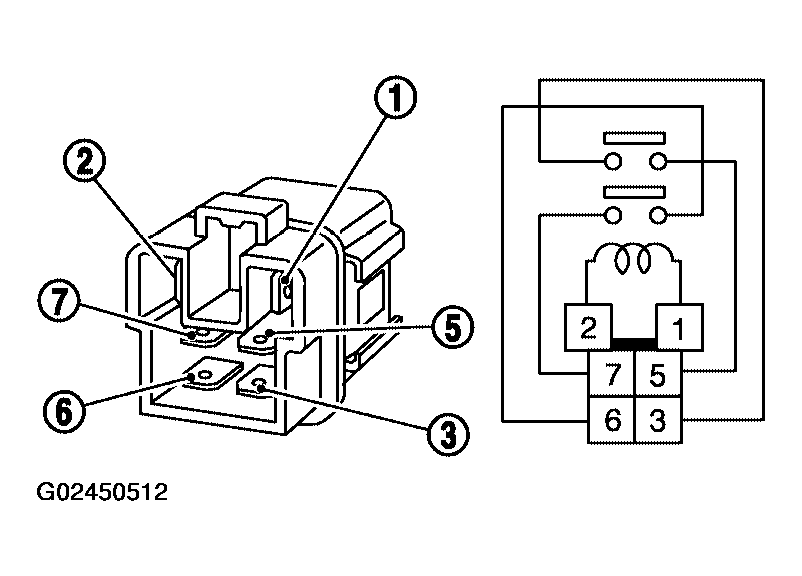

Fig 1: Checking Continuity Between ECM Relay Terminals 3 And 5, 6 And 7

Courtesy of NISSAN MOTOR CO., U.S.A.

ECM RELAY TERMINAL CONTINUITY

Condition	Continuity
12V direct current supply between terminals 1 and 2	Yes
OFF	No

If NG, replace ECM relay.
