2005 Nissan-Datsun Sentra Base, AutomaticFACTORY OEM SERVICE PROCEDURE
Stop Lamp Switch
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

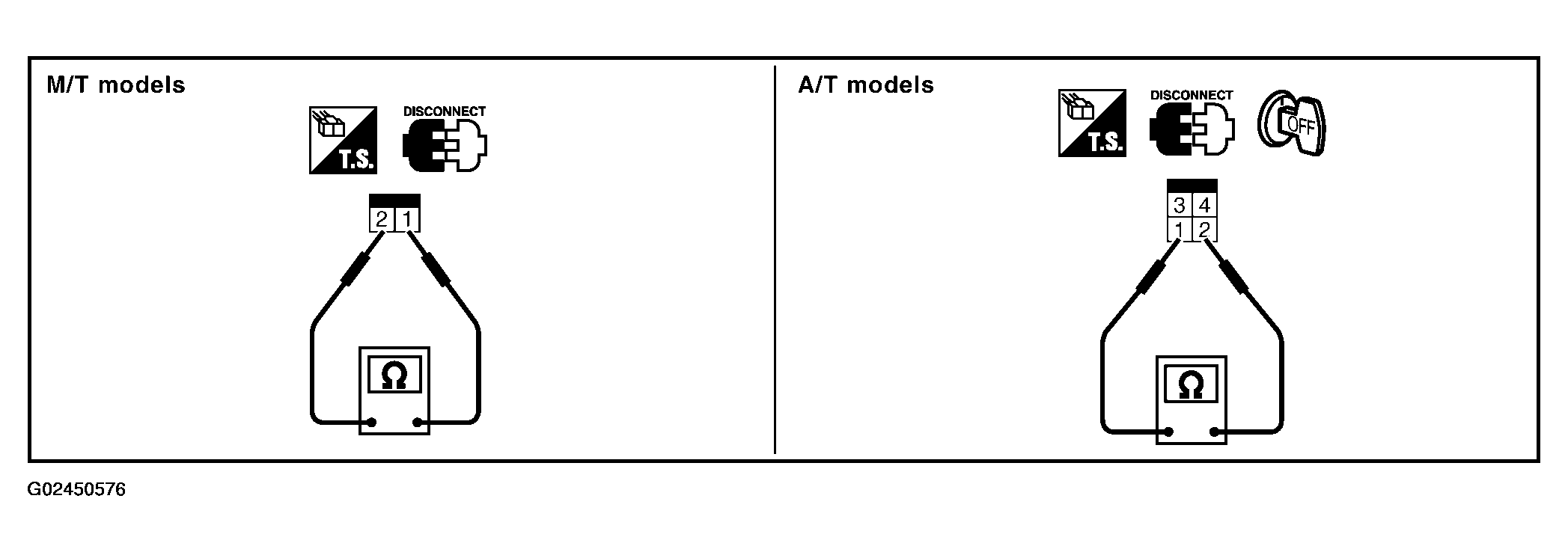

- Check harness continuity between stop lamp switch terminals 1 and 2 under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
STOP LAMP SWITCH TERMINALS 1 AND 2 TERMINAL CONTINUITY CONDITIONSCondition Continuity When brake pedal is fully released. Should not exist. When brake pedal is depressed. Should exist. If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL AND BRACKET ", and perform step 3 again.
