2005 Nissan-Datsun Sentra Base, AutomaticFACTORY OEM SERVICE PROCEDURE
ASCD Clutch Switch (For M/T Models)
- Turn ignition switch OFF.
- Disconnect ASCD clutch switch harness connector.

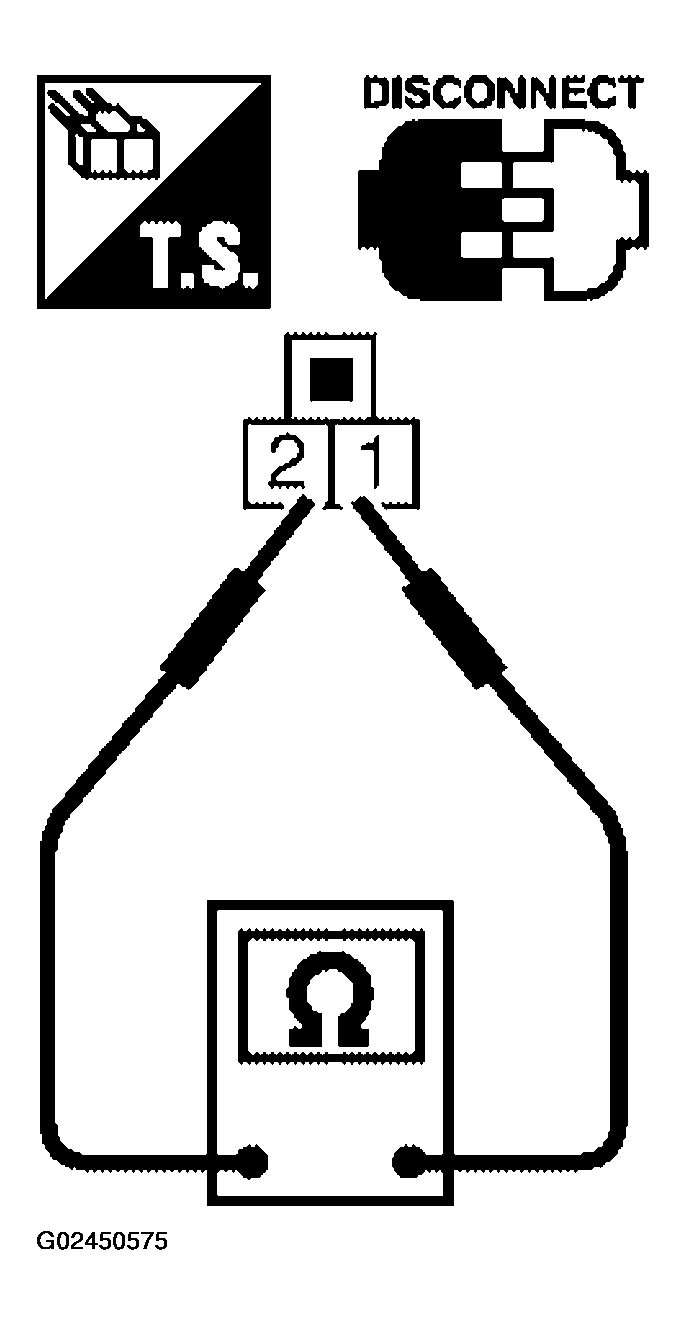

- Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A.
ASCD CLUTCH SWITCH TERMINALS 1 AND 2 TERMINAL CONTINUITY CONDITIONSCondition Continuity When clutch pedal is fully released. Should exist. When clutch pedal is depressed. Should not exist. If NG, adjust ASCD clutch switch installation, refer to "CLUTCH SYSTEM ", and perform step 3 again.
