2005 Nissan-Datsun Altima SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE
Stop Lamp Switch
- Turn ignition switch OFF.
- Disconnect stop lamp switch harness connector.

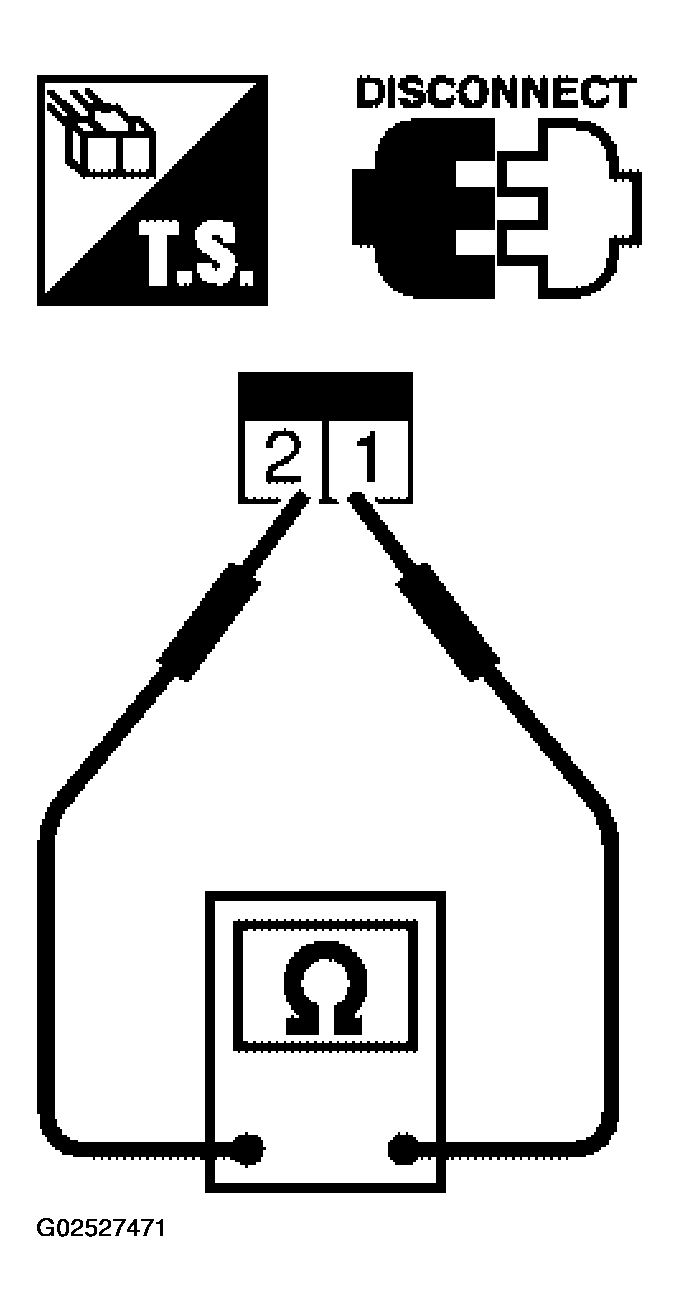

- Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.
STOP LAMP SWITCH CONTINUITY
| Condition | Continuity |
|---|---|
| Brake pedal: Fully released | Should not exist. |
| Brake pedal: Slightly depressed | Should exist. |
If NG, adjust stop lamp switch installation and perform step 3 again.
