2005 Nissan-Datsun Altima SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE

Data Monitor Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

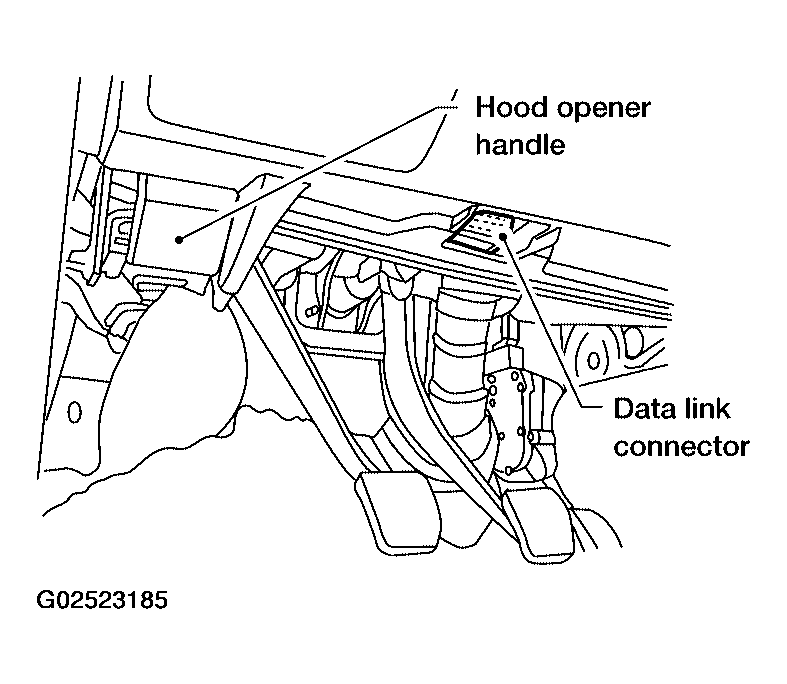

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)" on CONSULT-II screen.

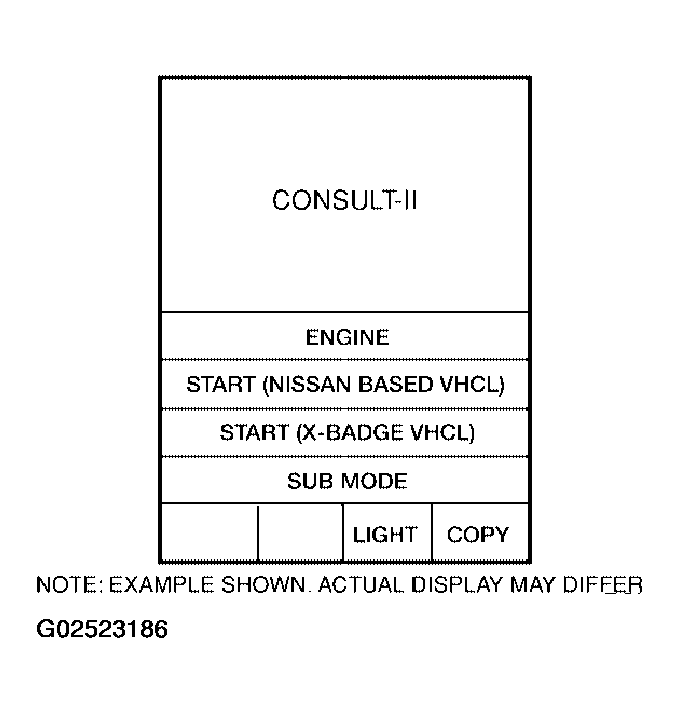

Fig 2: CONSULT-II Diagnosis Function Display (1 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "ABS".

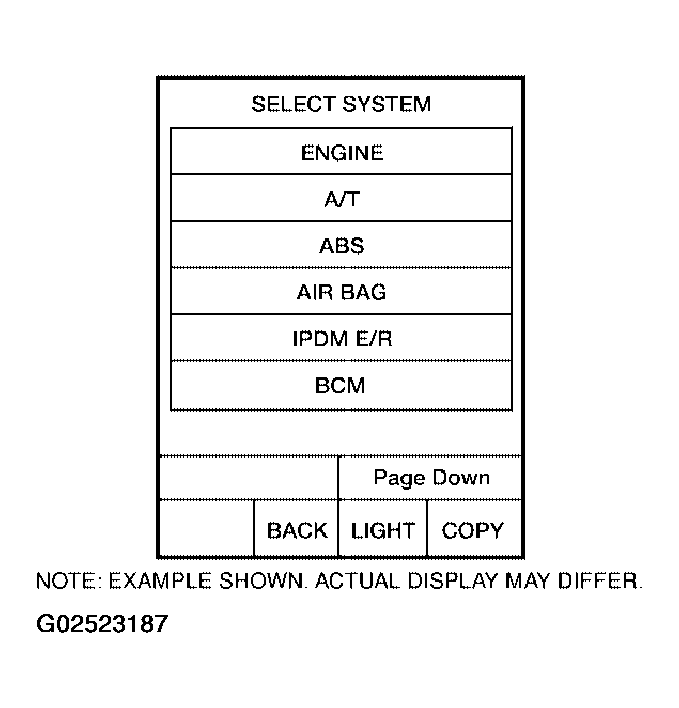

Fig 3: CONSULT-II Diagnosis Function Display (2 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "DATA MONITOR".

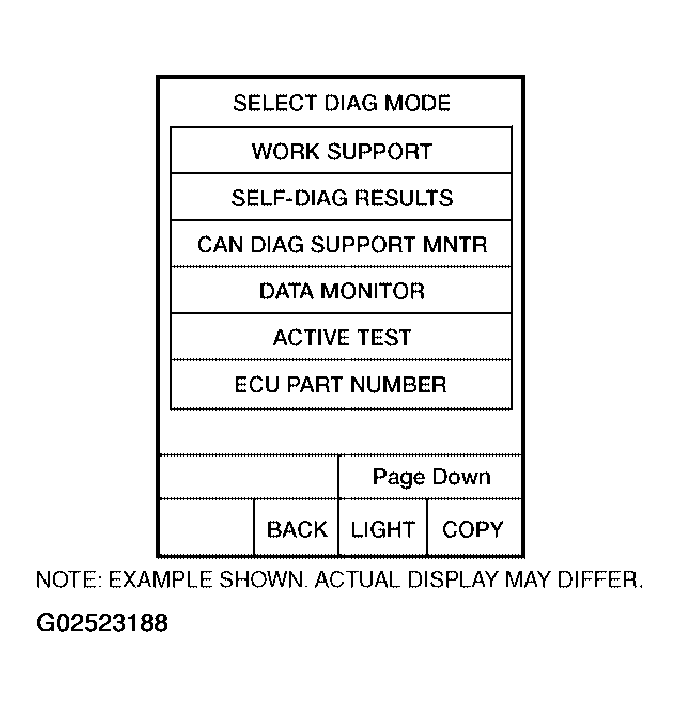

Fig 4: CONSULT-II Diagnosis Function Display (3 Of 3)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "SETTING" on "SELECT MONITOR ITEM" screen.
Touch "AUTO TRIG" or "MANU TRIG" on "SET RECORDING CONDITION" screen.
Touch "START" on "SELECT MONITOR ITEM".
