2005 Nissan-Datsun Altima SE-R, AutomaticFACTORY OEM SERVICE PROCEDURE
Encoder and Limit Switch Check (Driver side)
- CHECK DOOR WINDOW SLIDE MECHANISM
Check the following.
- Obstacles in window, glass molding, etc.
- Worn or deformed glass molding.
- Door sash tilted too far inward or outward.
- Door window regulator.
OK or NG
- OK: GO TO 2
- NO: Remove obstacles or repair door window slide mechanism.
- CHECK LIMIT SWITCH OPERATION

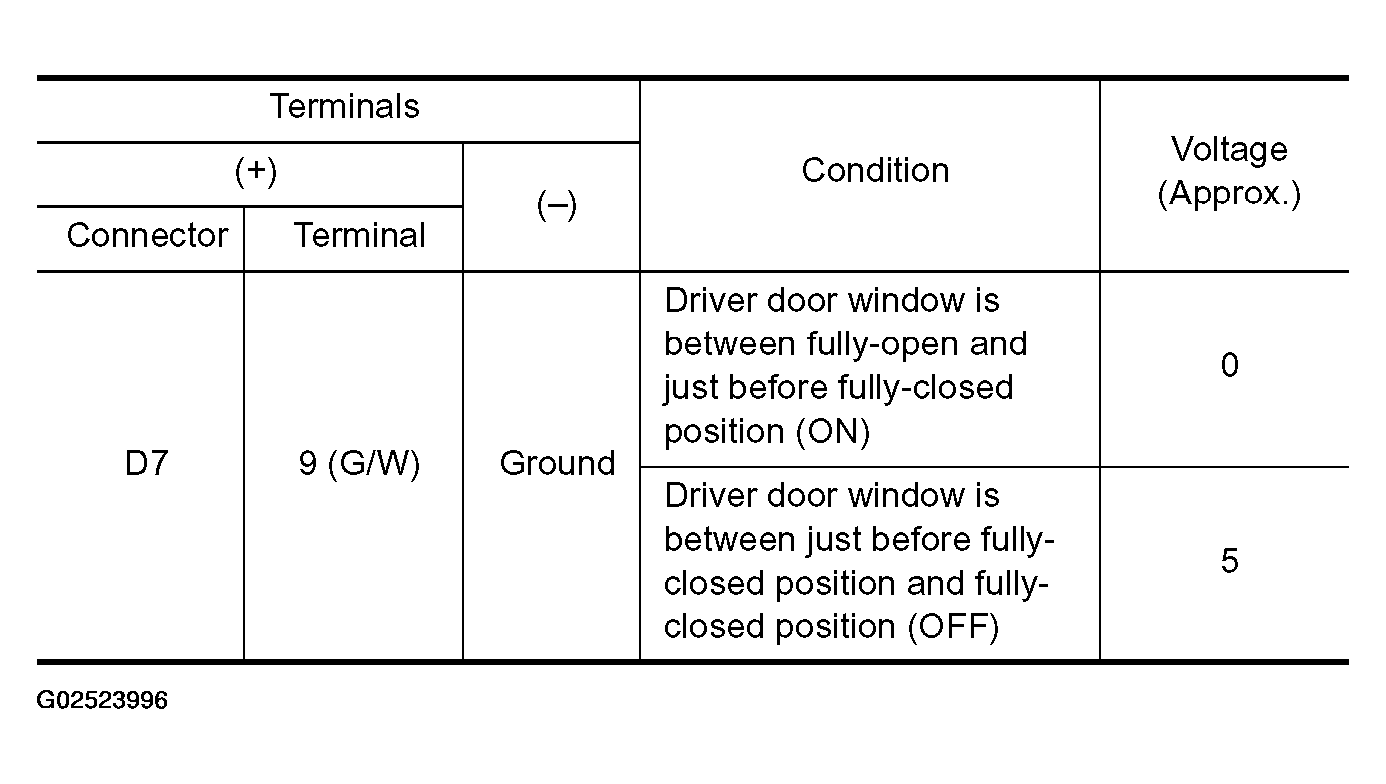

Check voltage between main power window and door lock/unlock switch connector D7 terminal 9 and ground.
