2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Stereo Component Controller ASSY: Replacement

WARNING: This page is about a different car, the 2003 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See COMPONENTS

SHIP MODE SETTING (W/ CD CHANGER)
1. Take out all of the CDs.
  NOTE: If they cannot be taken out, do not attempt to take out forcibly and send the unit for repair.
2. While simultaneously pressing the "SEEK UP" and "DISC" switches, turn the ignition switch to ACC.

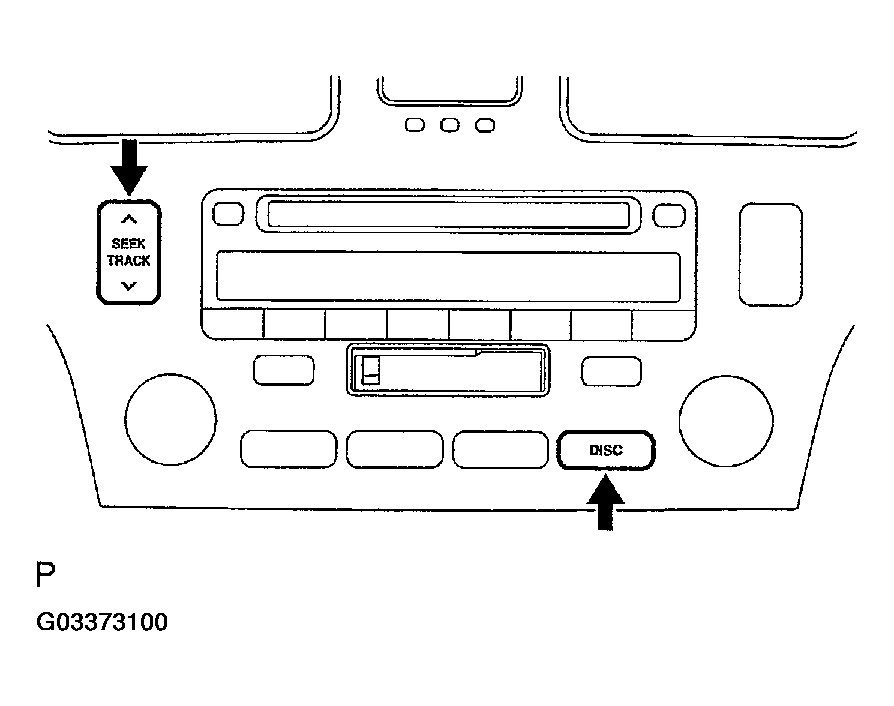

  Fig 1: Identifying Disc Switch
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  When the ship mode has been set, "SHIP" must be displayed.
3. Turn the ignition switch to OFF and disconnect the battery negative terminal.
  NOTE: Connecting the battery negative terminal automatically finishes the ship mode.
