2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
On-Vehicle Inspection
WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.
- INSPECT INTAKE CONTROL VALVE ASSY NO. 2
- Check the operation.

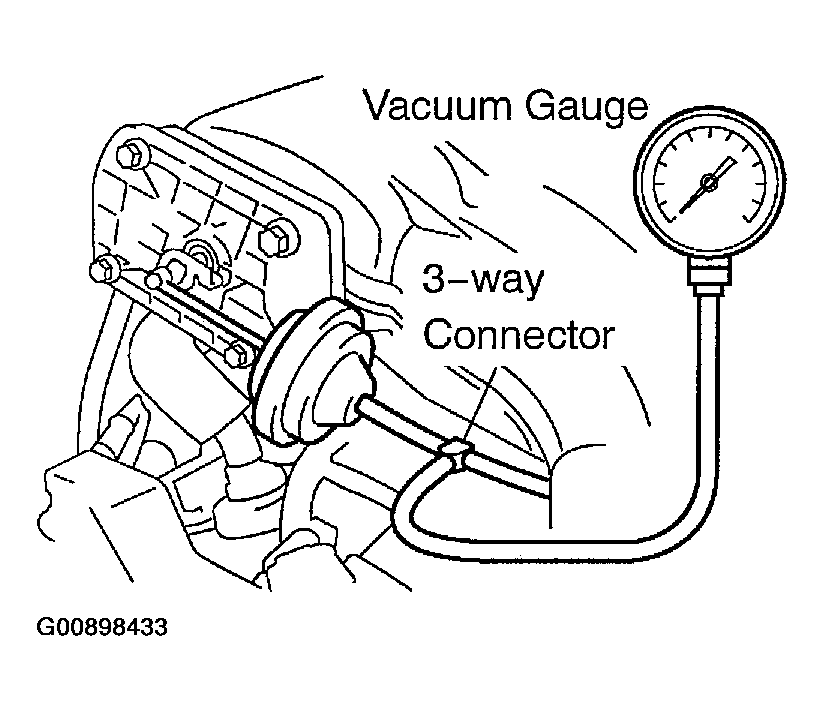

- Using a 3-way connector, connect the vacuum gauge to the actuator hose as shown in the illustration.

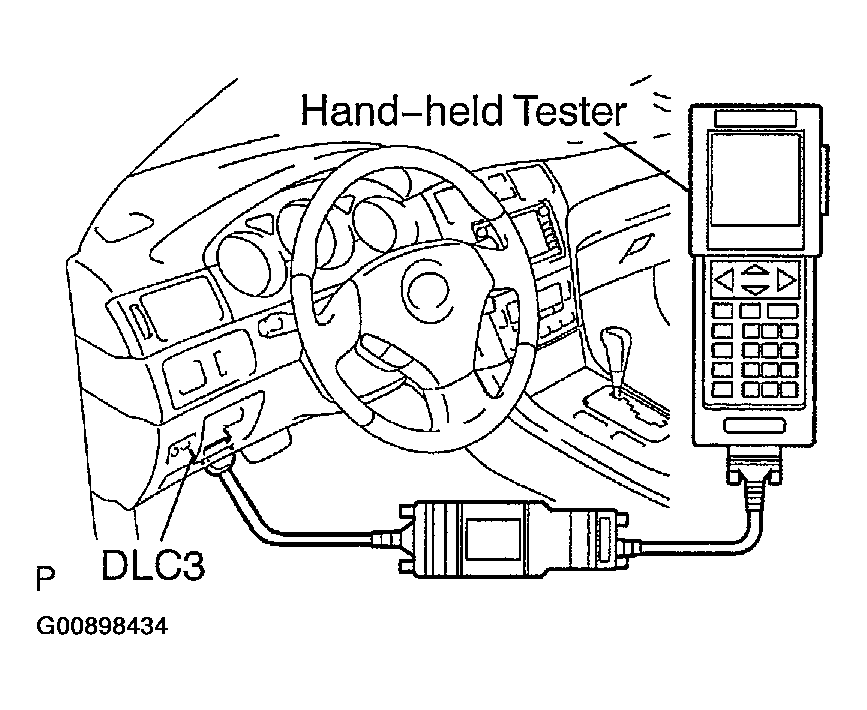

- Connect the hand-held tester to the DLC3.
- Start the engine.
- Turn the hand-held tester switch ON.
- Select the item "DIAGNOSIS/ENHANCED OBD II/ACTIVE TEST/INTAKE CTL VSV1" and operate the VSV for AICS.
- Check the operation.
