2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Work Step

WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

When removing instrument panel, combination meter, A/C and AV switch, display unit, take steps in the order shown by the numbers below.

CAUTION:

Disconnect both battery cables in advance.
Disconnect air bag system line in advance.
Never tamper with or force air bag lid open, as this may adversely affect air bag performance.
Be careful not to scratch pad and other parts.

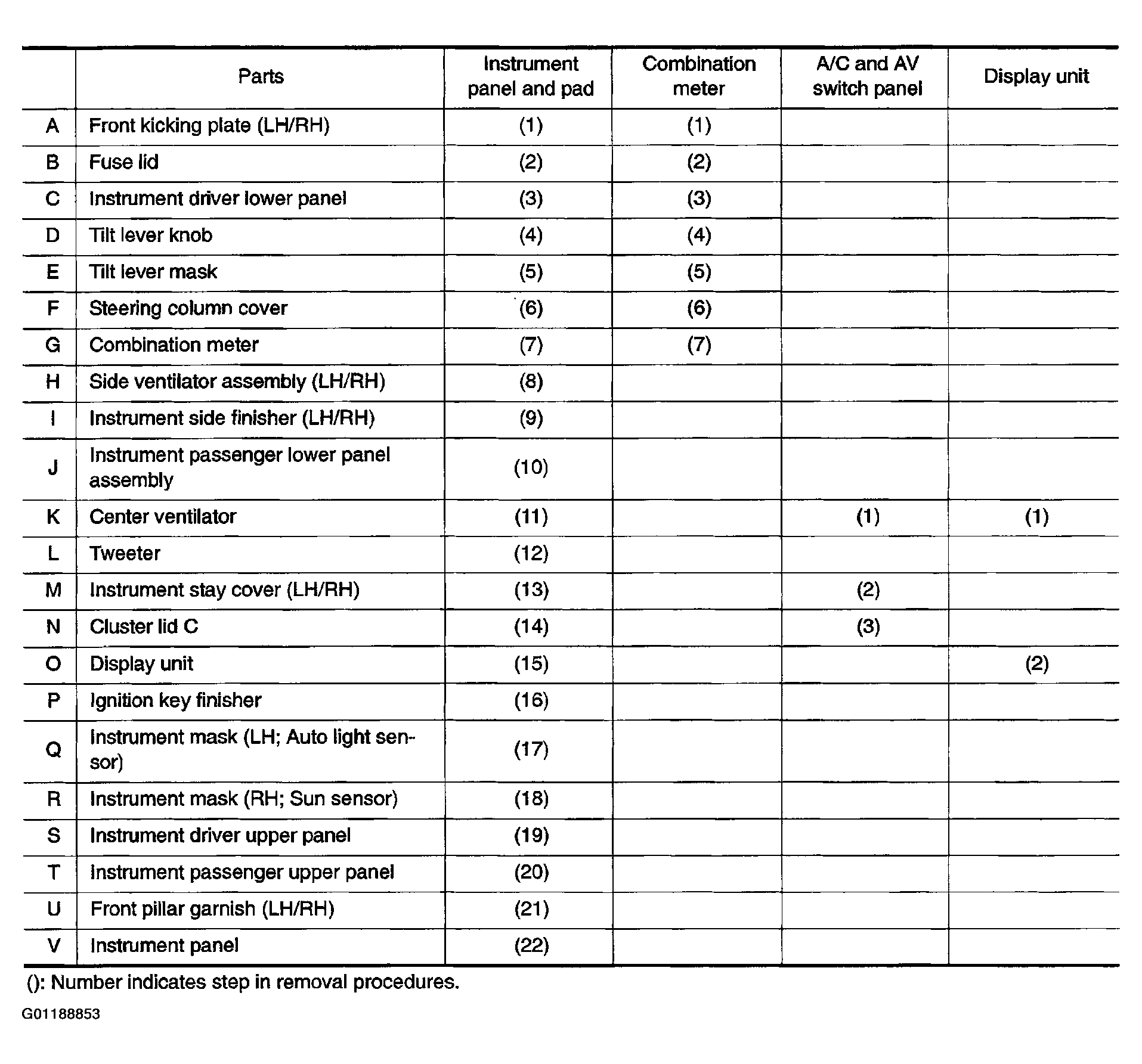

Fig 1: Work Step Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
