Transfer Assembly: Pre-Inspection: Backlash

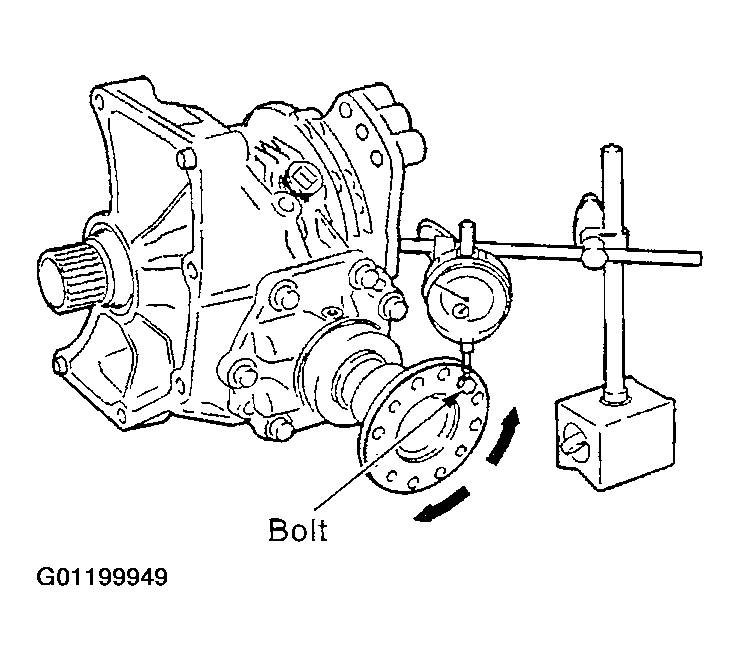

- Install a bolt to the companion flange.
- Fit a dial gauge onto the bolt.
- Measure the circumference backlash of the companion flange, and make sure it satisfies the standard below.
Backlash: 0.13 - 0.19 mm (0.0051 - 0.0075 in)
- If measured value is out of the specification, disassemble it to check and adjust each part.
