2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE
Electric Controlled Coupling
WARNING: This page is about a different car, the 2003 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

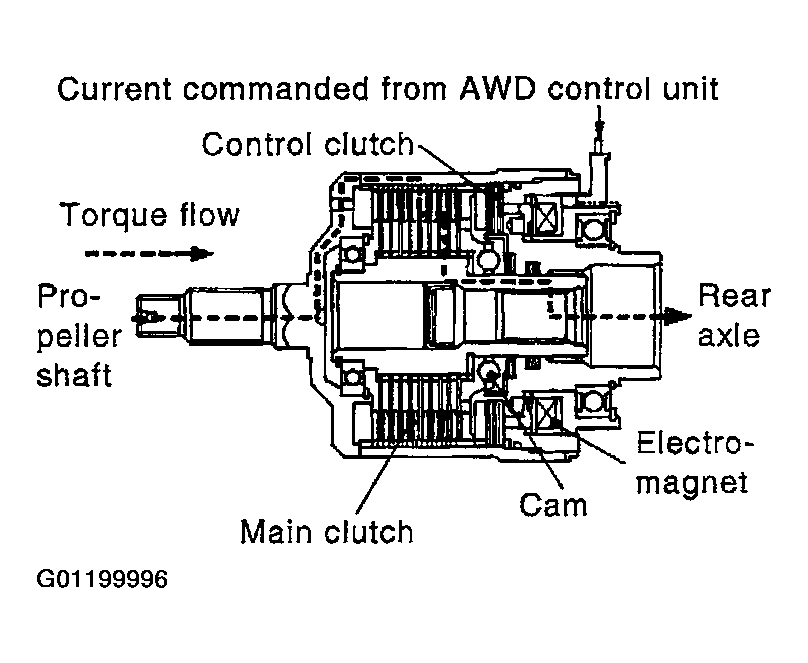

- In response to command current from AWD control unit, control clutch pull- in force is generated at the electromagnet and torque is generated at the control clutch.
- The cam operates in response to control clutch torque and applies pressure to main clutch.
- Main clutch transmits torque from input shaft to output shaft, according to the amount of pressure.

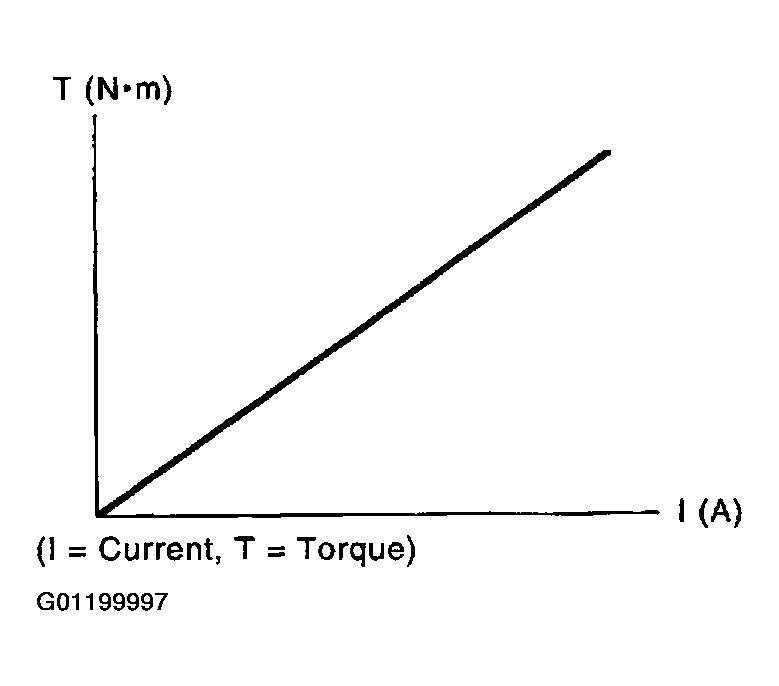

- The actual amount of torque transfer is determined by control current as shown in figure below (I-T characteristics figure).
