Step Lamp Operation Check
- CHECK STEP LAMP OPERATION
With CONSULT-II

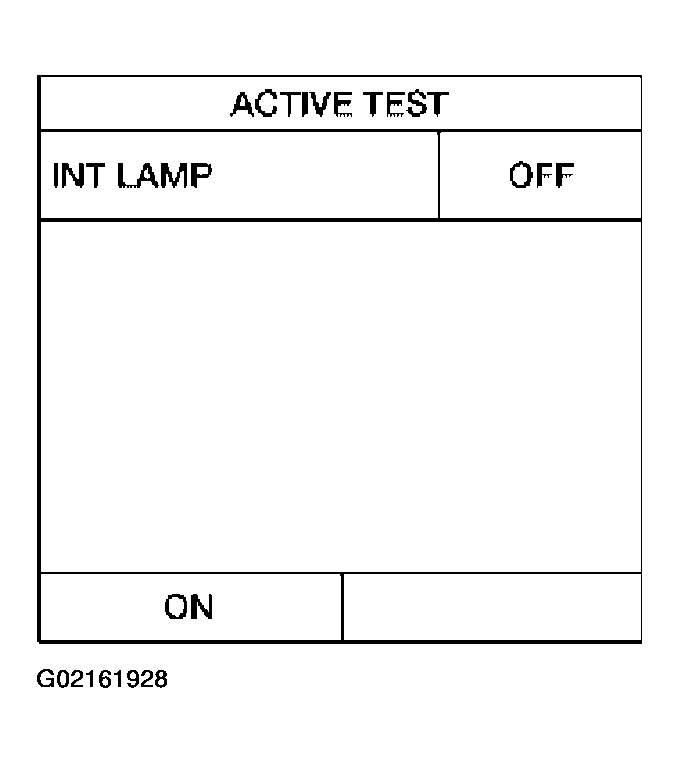

- Select "ACTIVE TEST" IN "MULTI REMOTE ENT" with CONSULT-II.
- Select "INT ILLUM" and touch "ON". Step lamp should illuminate.
Stop lamp should illuminate.
Without CONSULT-II

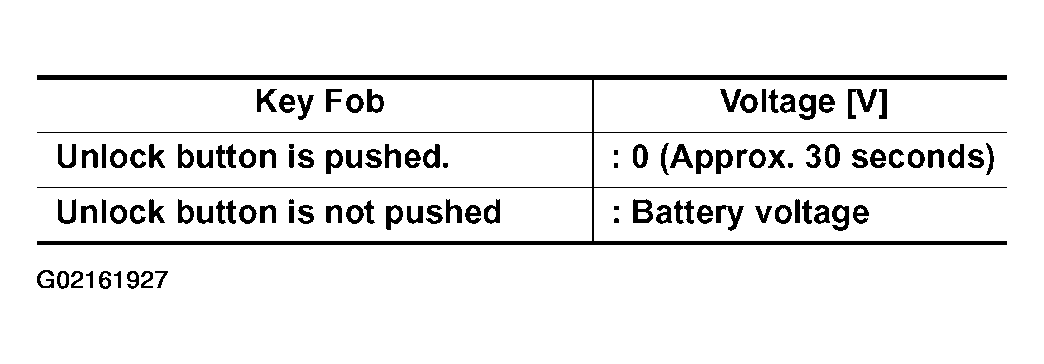

Push unlock button of key fob with all doors closed and driver's door locked, and check voltage between BCM harness connector M20 terminal 33 (R/W) and ground.
