Interior Lamp Operation Check
- CHECK INTERIOR LAMP
Check if the interior lamp switch is in the ON position and the lamp illuminates.
Does interior lamp illuminate?
- Yes: GO TO 2
- No: Check interior room lamp circuit. Refer to "INTERIOR ROOM LAMP ".
- CHECK INTERIOR LAMP OPERATION
With CONSULT-II

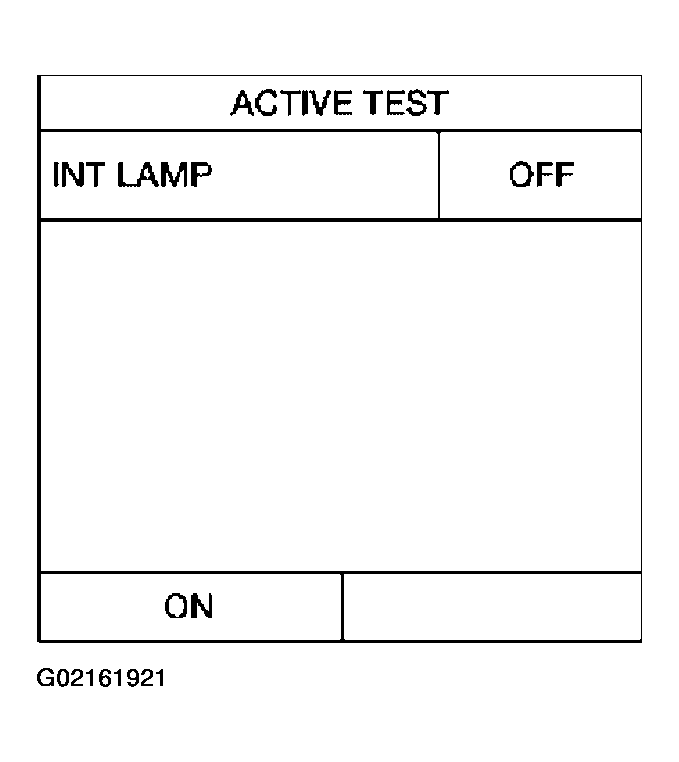

- Select "ACTIVE TEST" in "MULTI-REMOTE CONT SYS" with CONSULT-II.
- Select "INT ILLUM" and touch ON.
Interior lamp should illuminate.
Without CONSULT-II

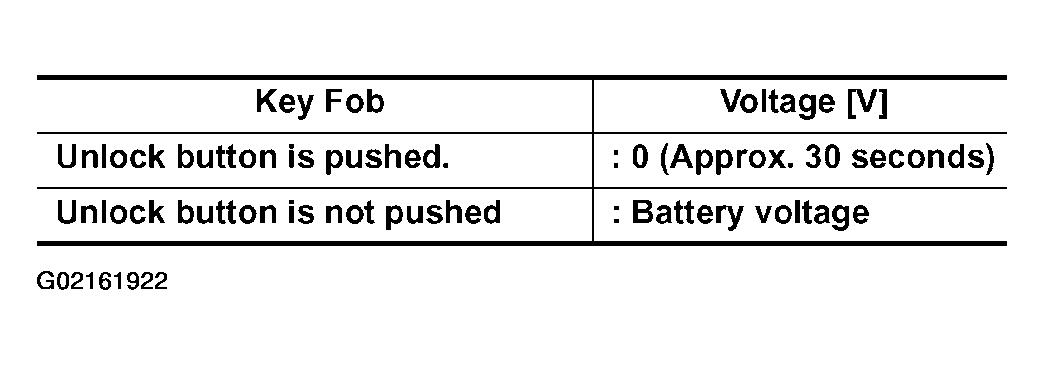

Push unlock button of key fob with all doors closed and driver's door locked, and check voltage between BCM harness connector M20 terminal 32 (R) and ground.
