Ignition Illumination Operation Check
- CHECK IGNITION ILLUMINATION OPERATION
With CONSULT-II

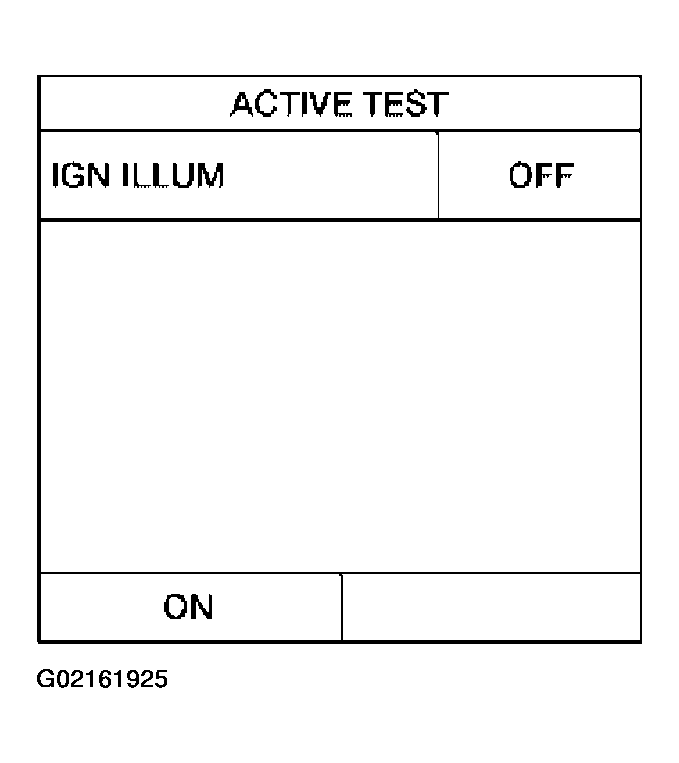

- Select "ACTIVE TEST" IN "MULTI REMOTE ENT" with CONSULT-II.
- Select "IGN ILLUM" and touch "ON".
Ignition illuminate should illuminate.
Without CONSULT-II

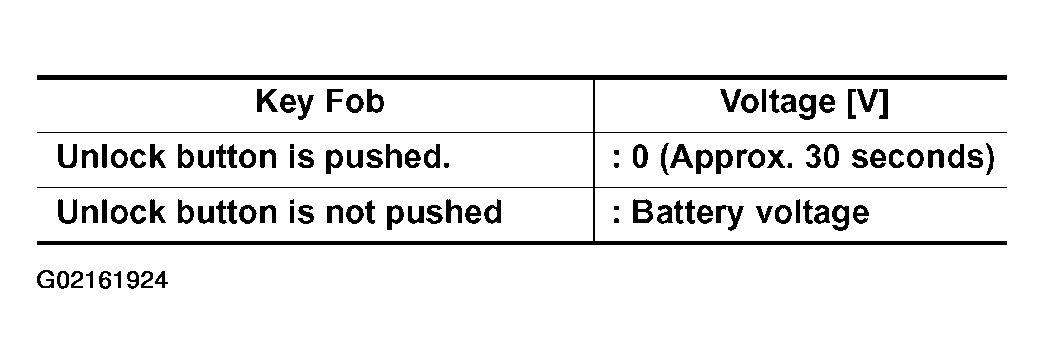

Push unlock button of key fob with all doors closed and driver's door locked, and check voltage between BCM harness connector M20 terminal 34 (R/Y) and ground.
