2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Key Fob Id Set Up With Consult-II

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. When the ID code of a lost key fob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" to the data link connector.

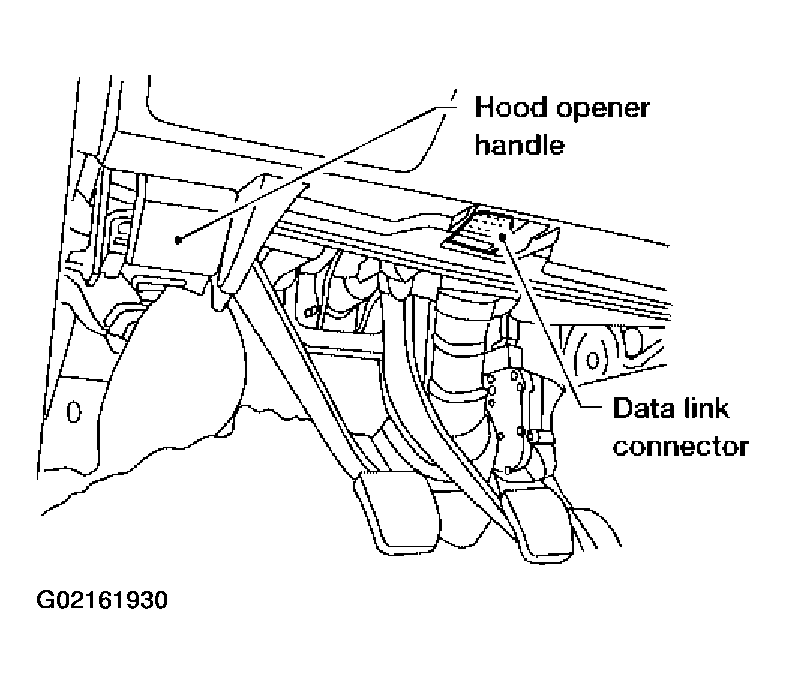

    Fig 1: Locating Data Link Connector And Hood Opener Handle
    G02161930Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch ON.
  4. Touch "START".

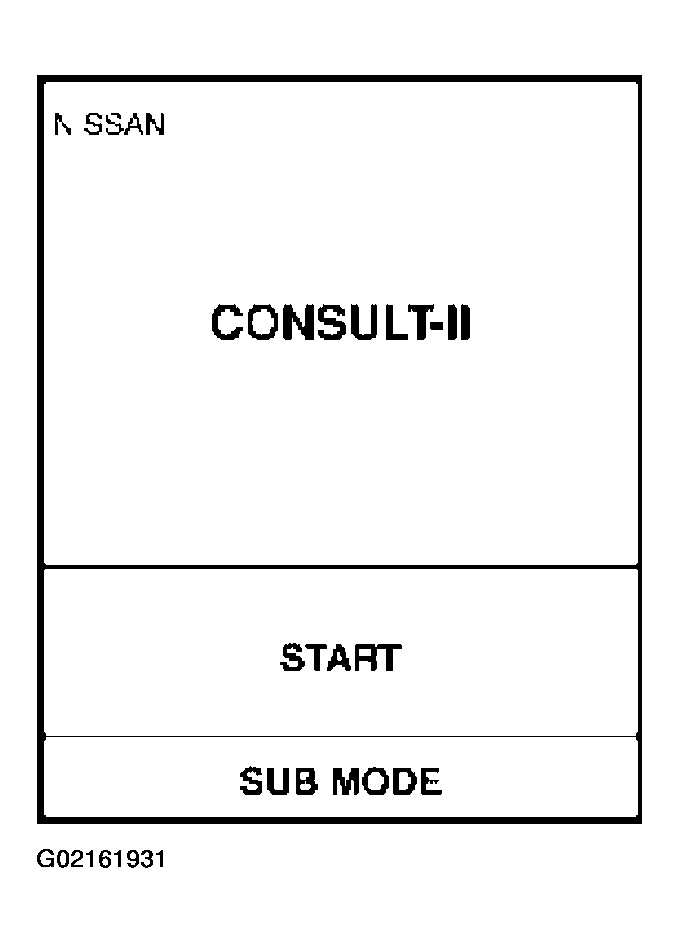

    Fig 2: Displaying Start Mode
    G02161931Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "BCM".

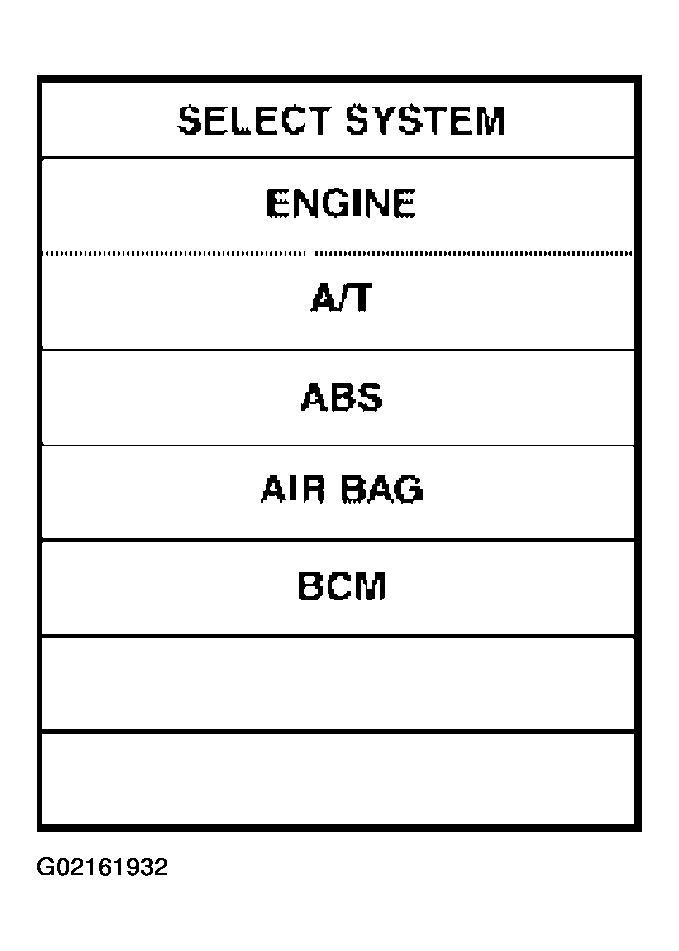

    Fig 3: Displaying Select System Mode
    G02161932Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "MULTI REMOTE ENT".

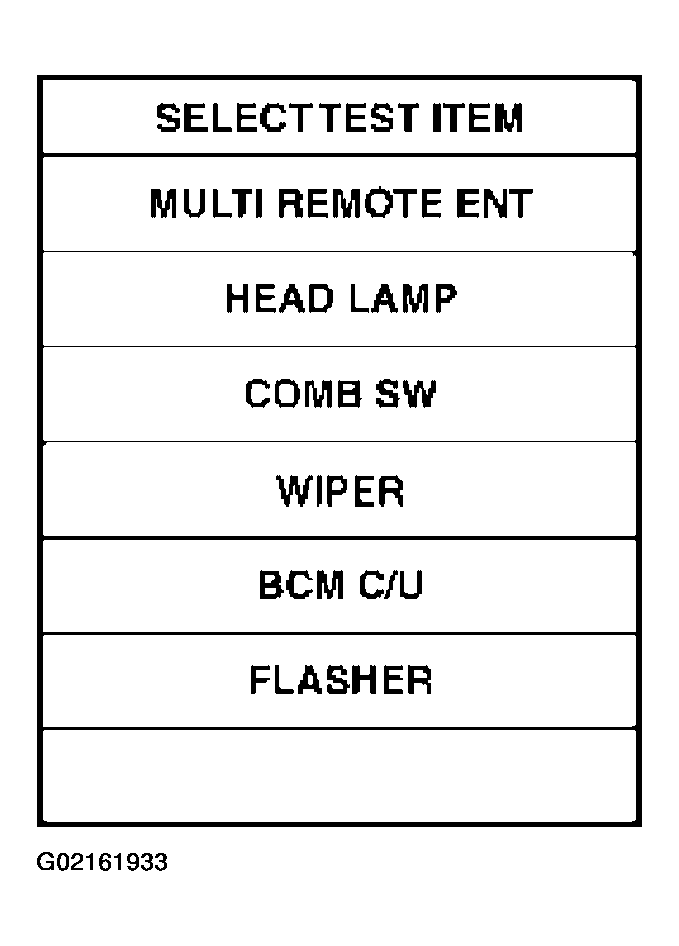

    Fig 4: Displaying Select Test Item Mode
    G02161933Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "WORK SUPPORT".

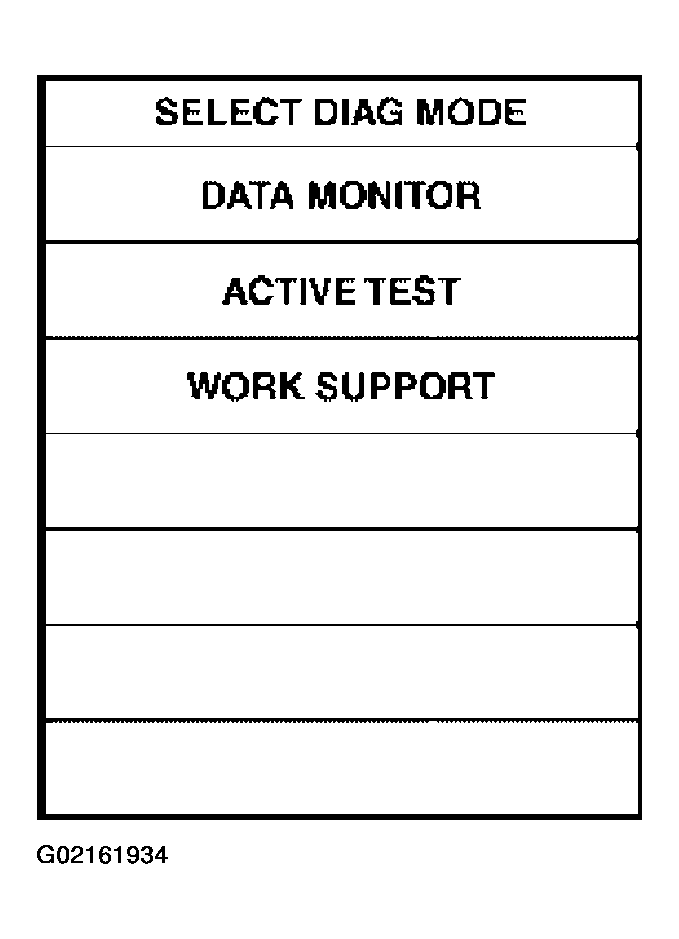

    Fig 5: Displaying Select Diagnostic Mode
    G02161934Courtesy of NISSAN MOTOR CO., U.S.A.
  8. The items are shown on the figure at left can be set up.
    • "REMO CONT ID CONFIR"

      Use this mode to confirm if a key fob ID code is registered or not.

    • "REMO CONT ID REGIST"

      Use this mode to register a key fob ID code.

      NOTE: Register the ID code when key fob or BCM is replaced, or when additional key fob is required.
    • "REMO CONT ID ERASUR"

      Use this mode to erase a key fob ID code.

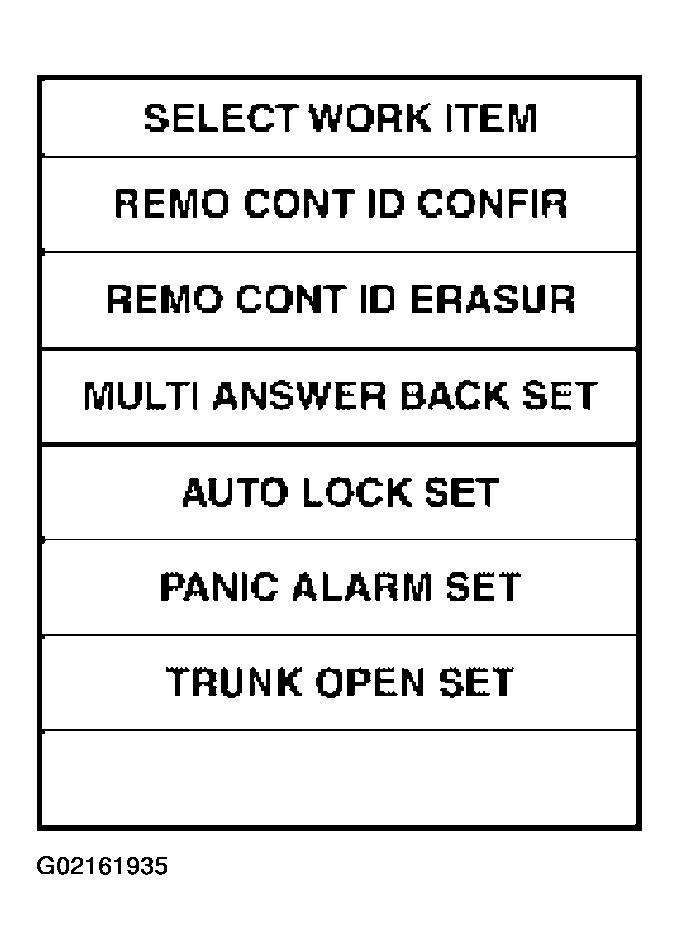

    Fig 6: Displaying Select Work Item Mode
    G02161935Courtesy of NISSAN MOTOR CO., U.S.A.
