2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Work Support

WARNING: This page is about a different car, the 2003 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

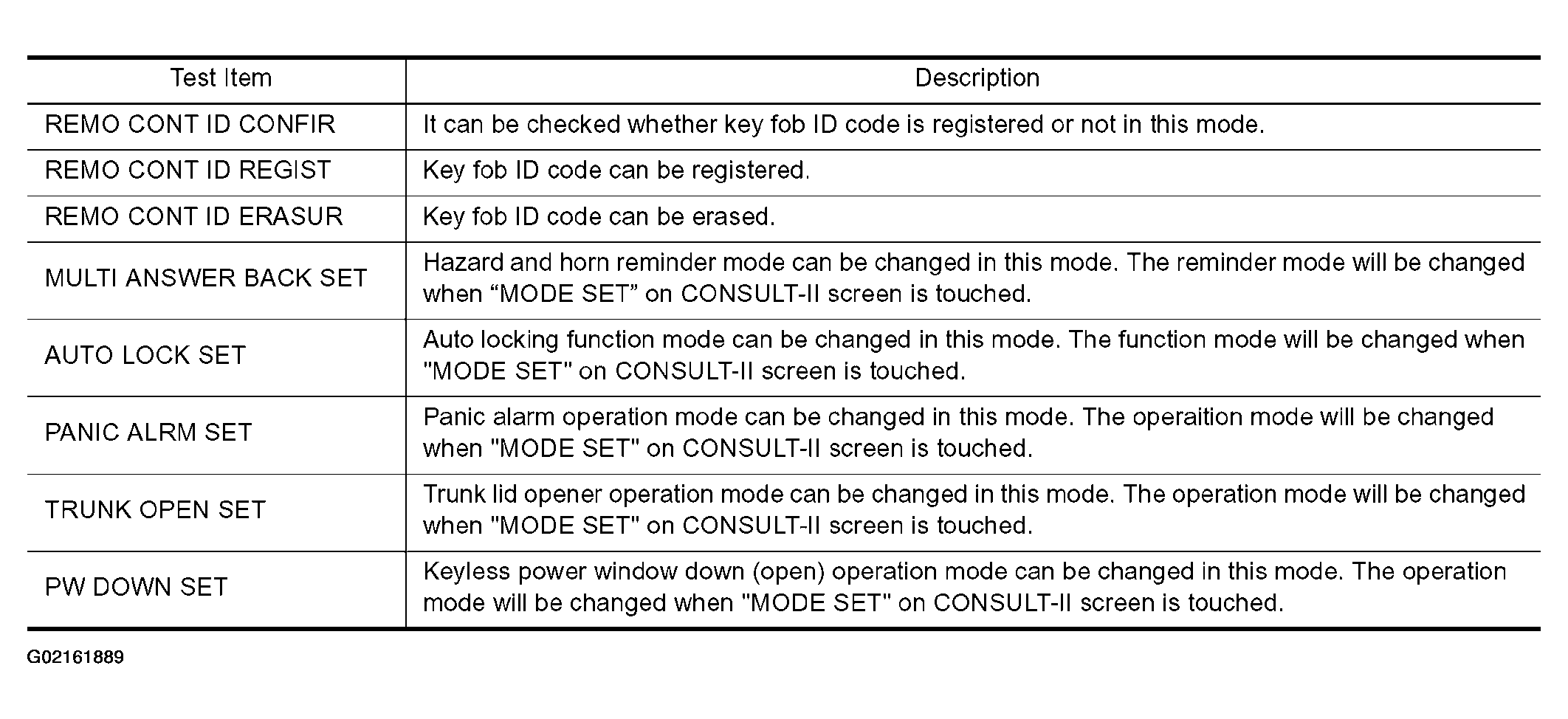

Fig 1: Work Support Table
G02161889Courtesy of NISSAN MOTOR CO., U.S.A.

Hazard and horn reminder mode

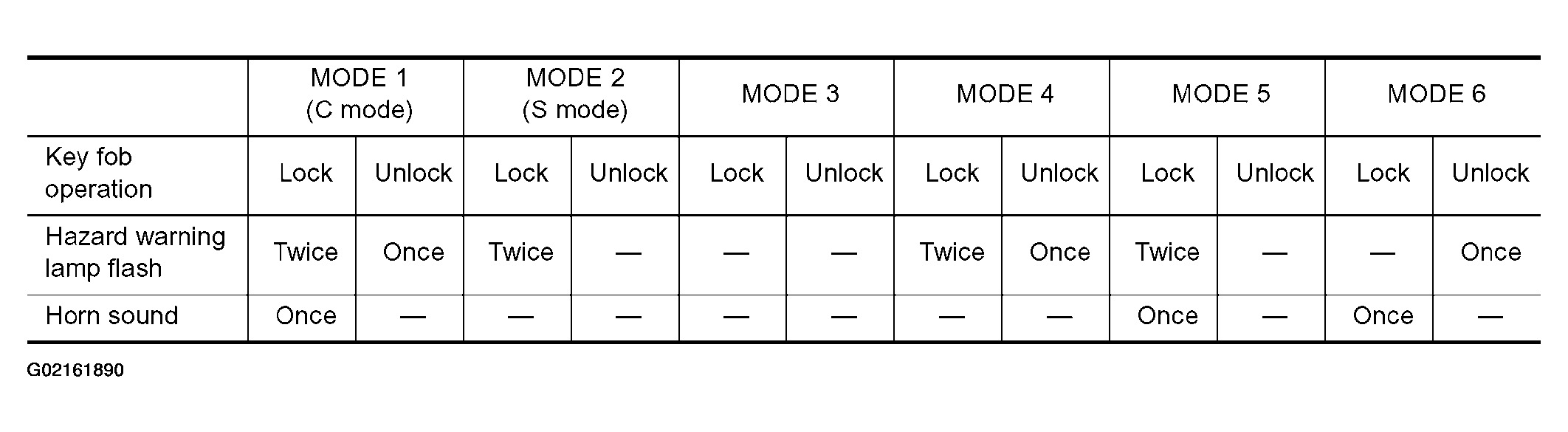

Fig 2: Hazard And Horn Reminder Mode Chart
G02161890Courtesy of NISSAN MOTOR CO., U.S.A.

Auto locking function mode

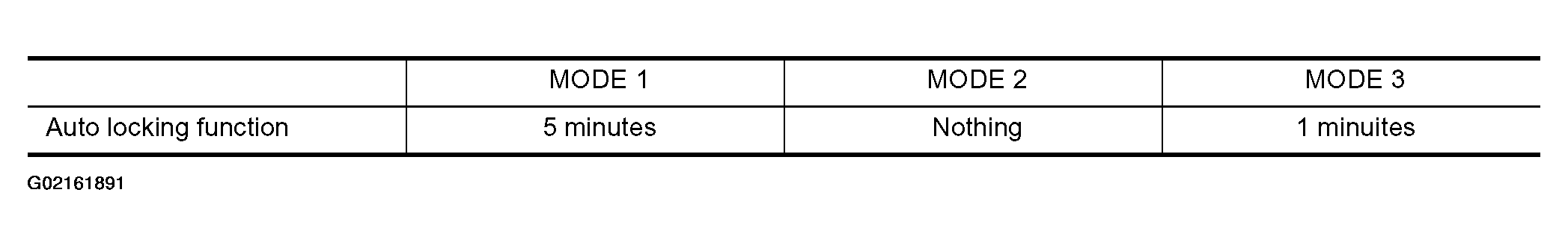

Fig 3: Auto Locking Function Mode Chart
G02161891Courtesy of NISSAN MOTOR CO., U.S.A.

Panic alarm operation mode

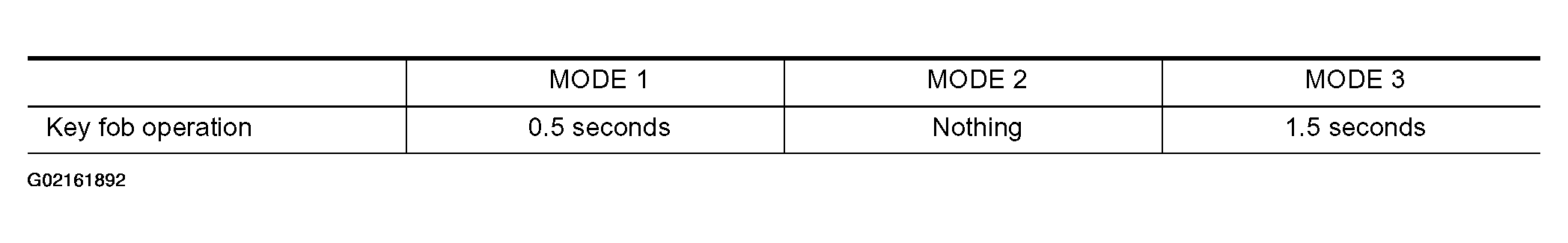

Fig 4: Panic Alarm Operation Mode Chart
G02161892Courtesy of NISSAN MOTOR CO., U.S.A.

Trunk open operation mode

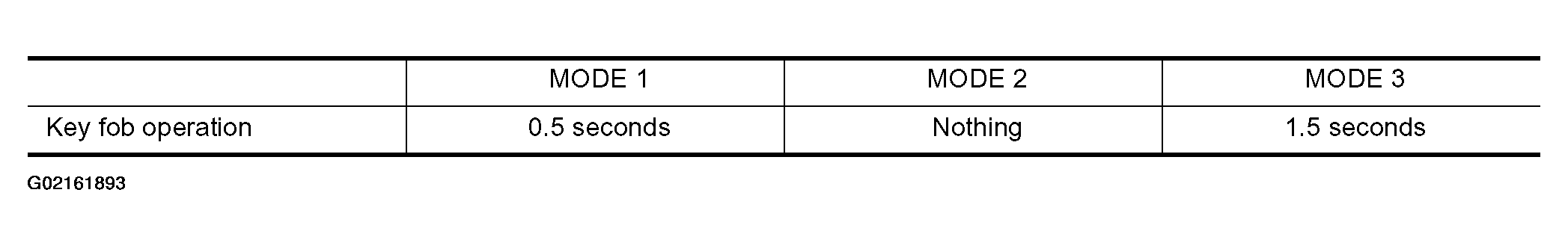

Fig 5: Trunk Open Operation Mode Chart
G02161893Courtesy of NISSAN MOTOR CO., U.S.A.

Power window down operation mode

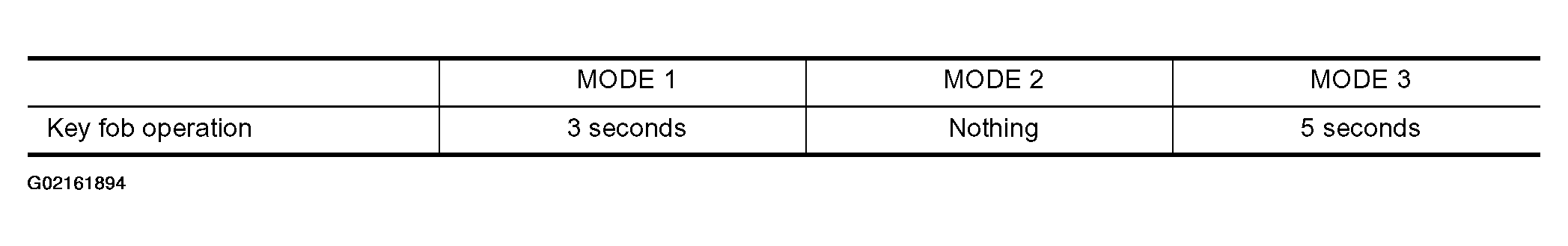

Fig 6: Power Window Down Operation Mode Chart
G02161894Courtesy of NISSAN MOTOR CO., U.S.A.
