2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Vehicle Condition Setting Is Not Possible

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
  1. HARNESS CHECK
    1. Turn ignition switch OFF.
    2. Disconnect connectors of combination meter, BCM, and AV and NAVI control unit.
    3. Check continuity AV and NAVI control unit and BCM.

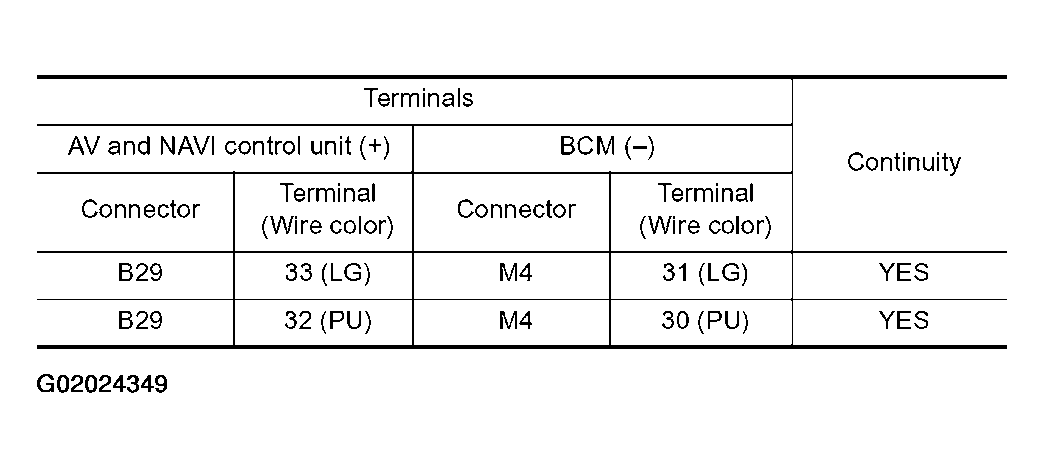

      Fig 1: Electrical Testing Specifications (Vehicle Condition Setting Not Possible - 1 Of 2)
      G02024349Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check continuity between AV and NAVI control unit and ground.

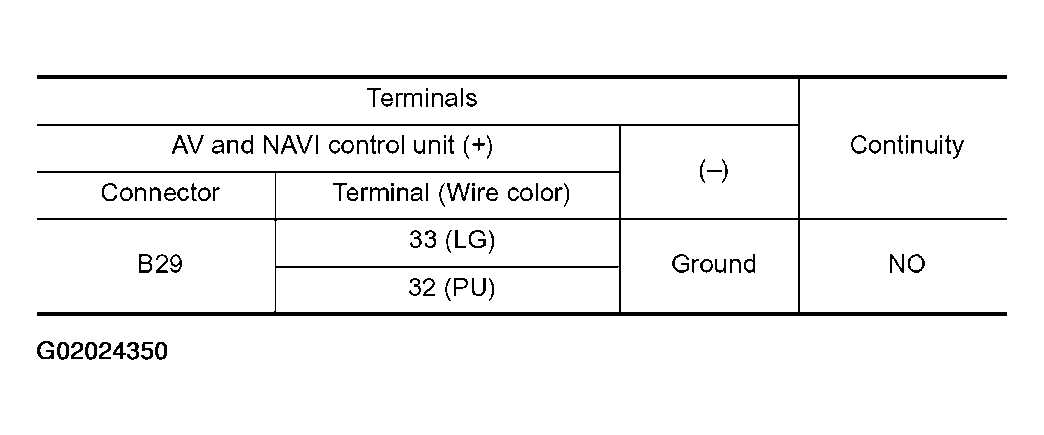

      Fig 2: Electrical Testing Specifications (Vehicle Condition Setting Not Possible - 2 Of 2)
      G02024350Courtesy of NISSAN MOTOR CO., U.S.A.
