Reverse Signal Check
- REVERSE LAMP CHECK
- Turn ignition switch ON.
- A/T shift selector lever into R-position. Does "R" in the shift position indicator come on?
YES or NO
YES >> GO TO 2.
NO >> Check back-up lamp system. Refer to "BACK-UP LAMP ".
- REVERSE SIGNAL CHECK

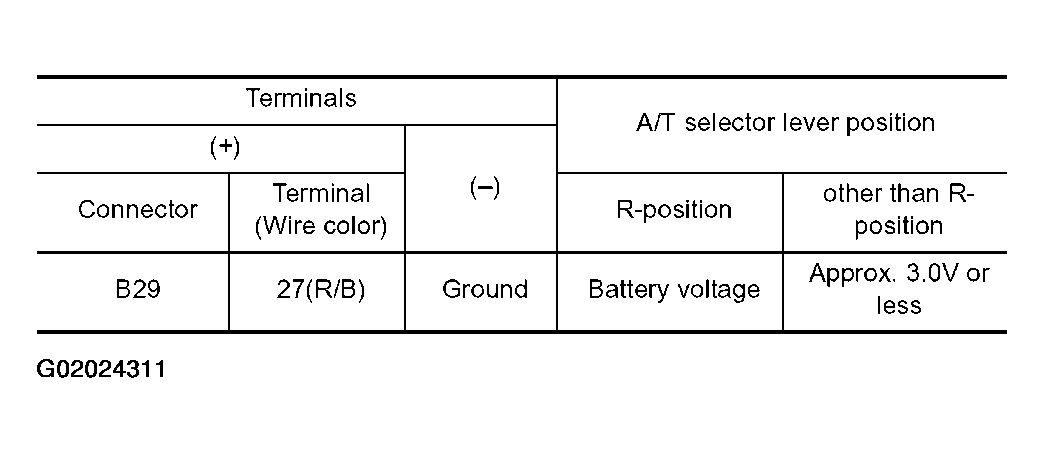

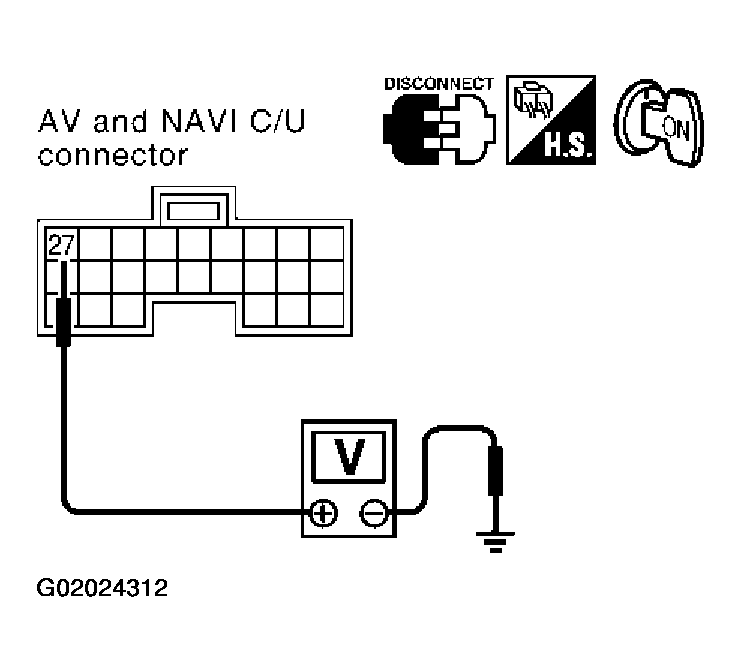

With the selector lever in R-position, Check voltage between AV and NAVI control unit and ground.
OK or NG
OK >> Replace AV and NAVI control unit.
NG >> Check harness for open or short between AV and NAVI control unit and back- up lamp relay.
