2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

RGB Screen Is Rolling

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

HARNESS CHECK
1. Turn ignition switch OFF.
2. Disconnect AV and NAVI control unit connector and Display connector.

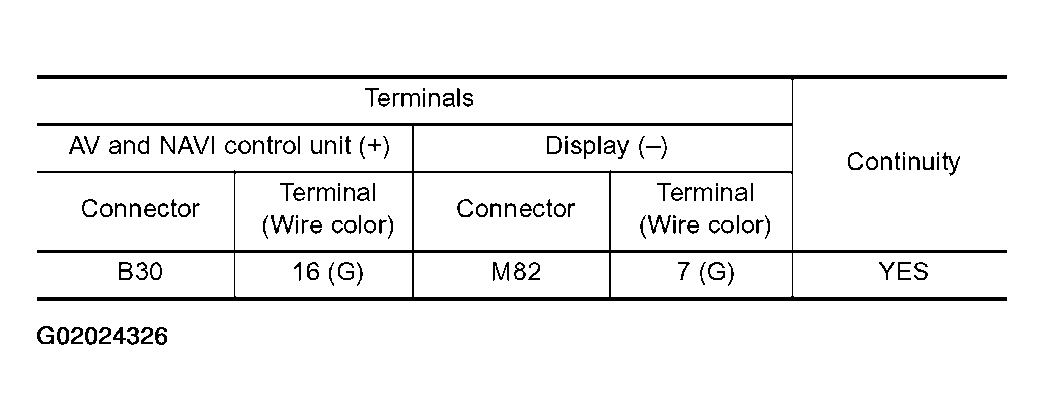

3. Check continuity between AV and NAVI control unit and Display.

  Fig 1: Electrical Testing Specifications (RGB Screen Rolling - 1 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.

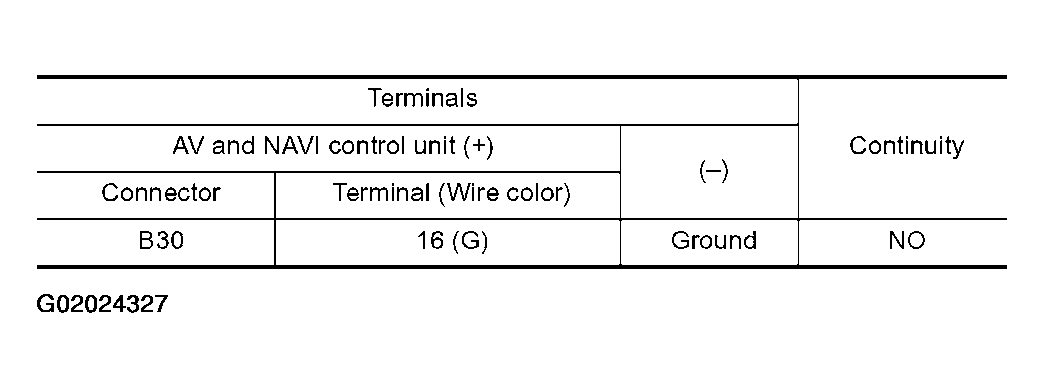

4. Check continuity between AV and NAVI control unit and ground.

  Fig 2: Electrical Testing Specifications (RGB Screen Rolling - 2 Of 2)
  Courtesy of NISSAN MOTOR CO., U.S.A.
