Illumination Control Signal Check
- ILLUMINATION CONTROL SIGNAL CHECK
- Turn ignition switch ON.

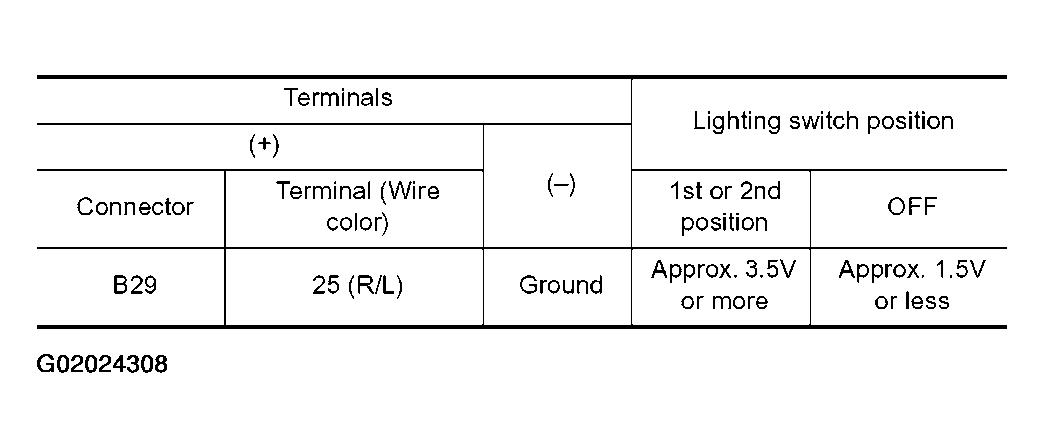

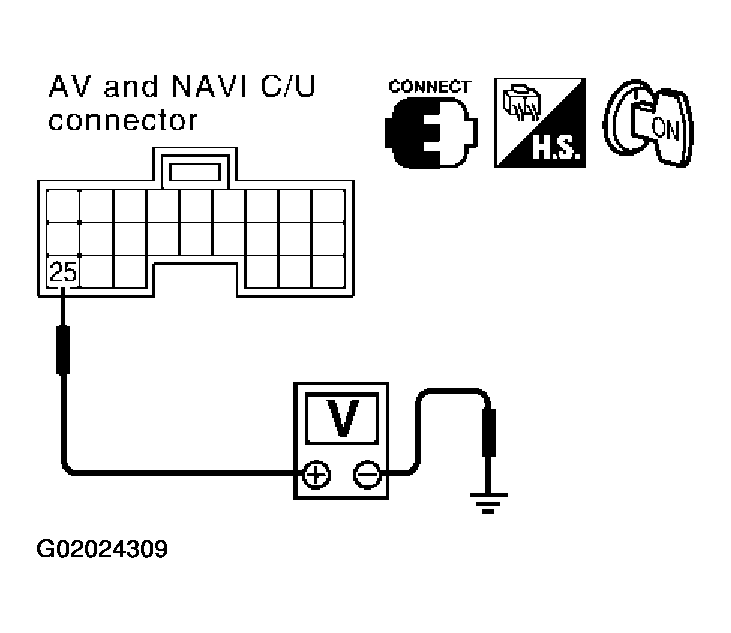

- Check voltage between AV and NAVI control unit and ground.
OK or NG
OK >> Replace AV and NAVI control unit.
NG >> Check harness for open or short between AV and NAVI control unit and BCM.
