Ignition Signal Check
- IGNITION SIGNAL CHECK
- Disconnect the AV and NAVI control unit connector.
- Turn ignition switch ON.

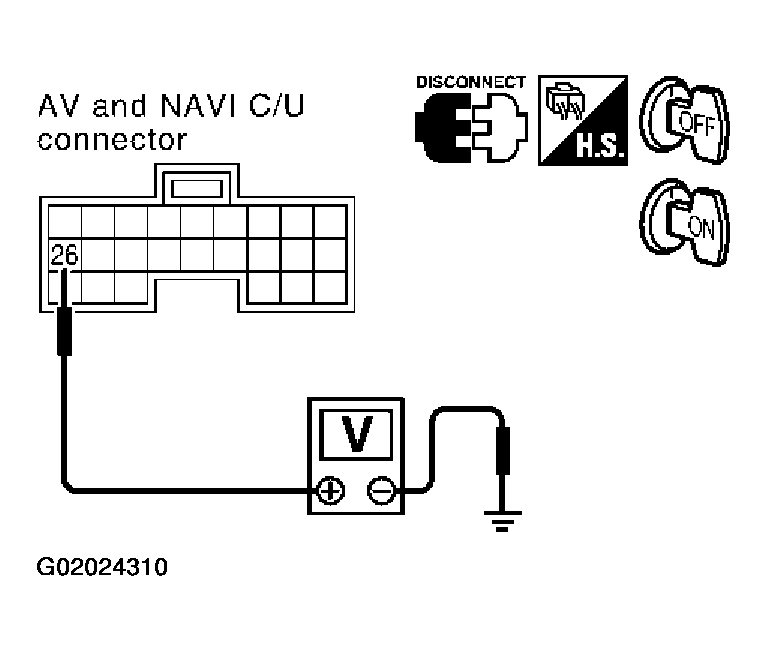

- Check voltage between AV and NAVI control unit harness connector B29 terminal 26 (W/G) and ground.
- Battery voltage should exist.
OK or NG
OK >> Replace AV and NAVI control unit.
NG >> Check harness for open or short between AV and NAVI control unit and fuse.
