Operation Procedure

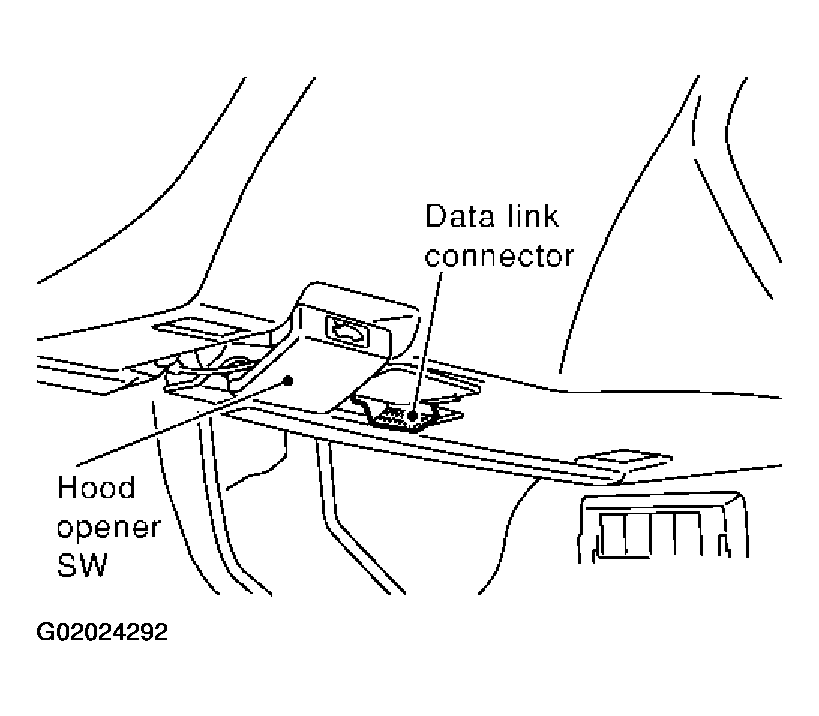

- With the ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector, and turn ignition switch ON.

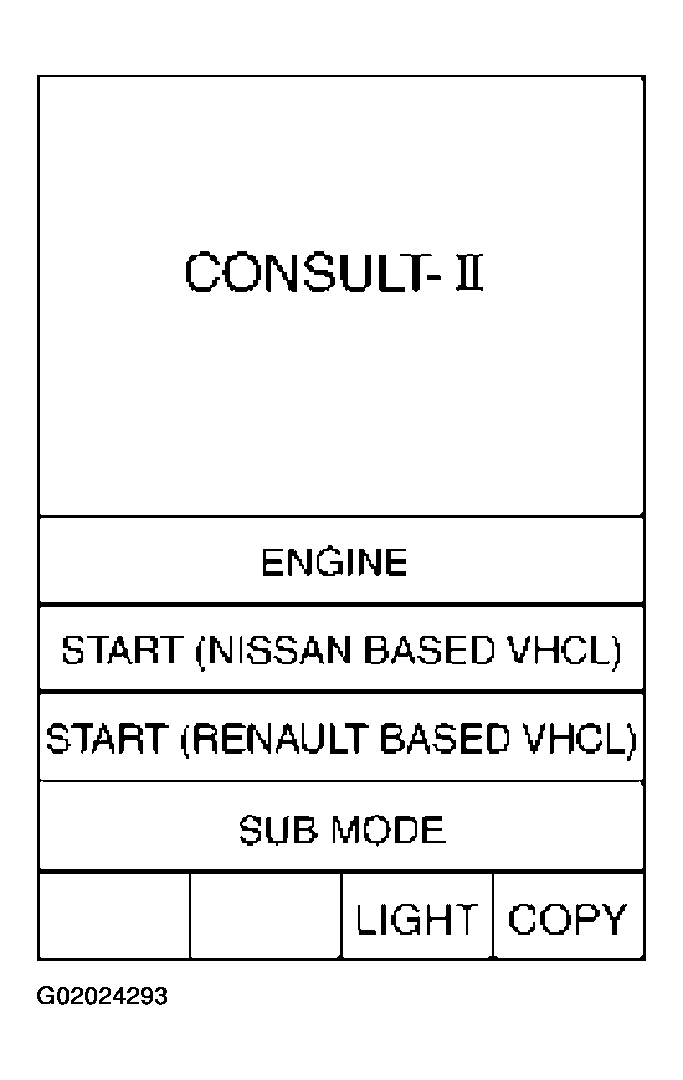

- Touch "START(NISSAN BASED VHCL)".

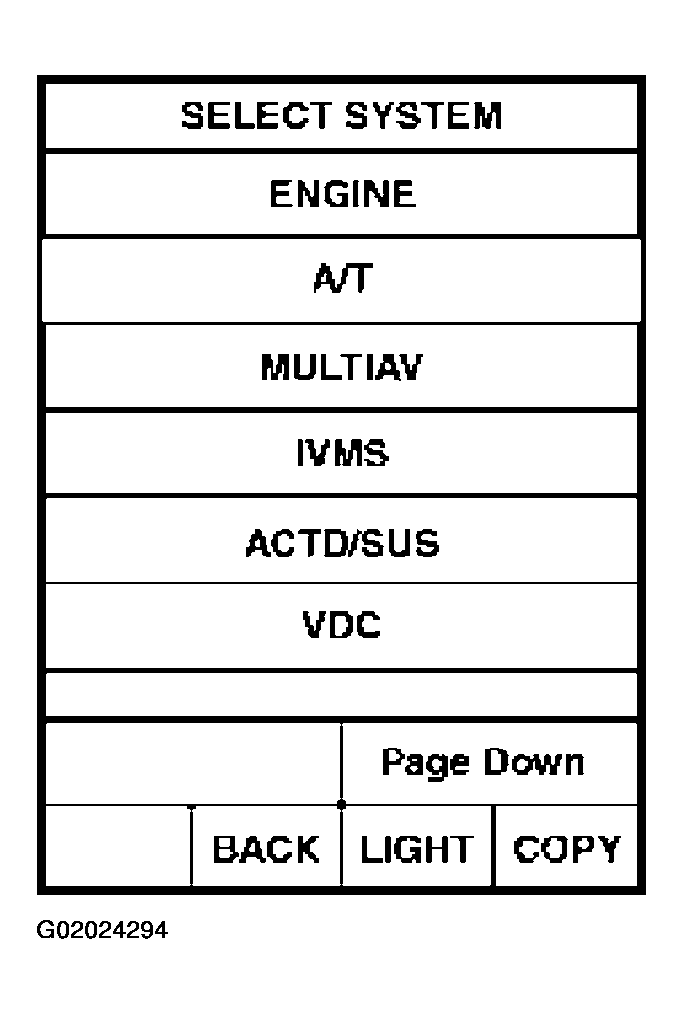

- Touch "MULTIAV"
If "MULTIAV" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".
- Select "VERSION", "SELF-DIAG RESULTS" or "SIGNAL MONITOR".
