2004 Nissan-Datsun Sentra SE-RFACTORY OEM SERVICE PROCEDURE

Procedure 2 (With Consult-II)

WARNING: This page is about a different car, the 2003 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If a electronic key is lost, the ID code of the lost electronic key must be erased to prevent unauthorized use.
When the ID code of a lost electronic key is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new remote controllers must be re-registered.
  1. Turn ignition switch "OFF".
  2. Connect "CONSULT-II" and "CONSULT-II CONVERTER" to the data link connector.

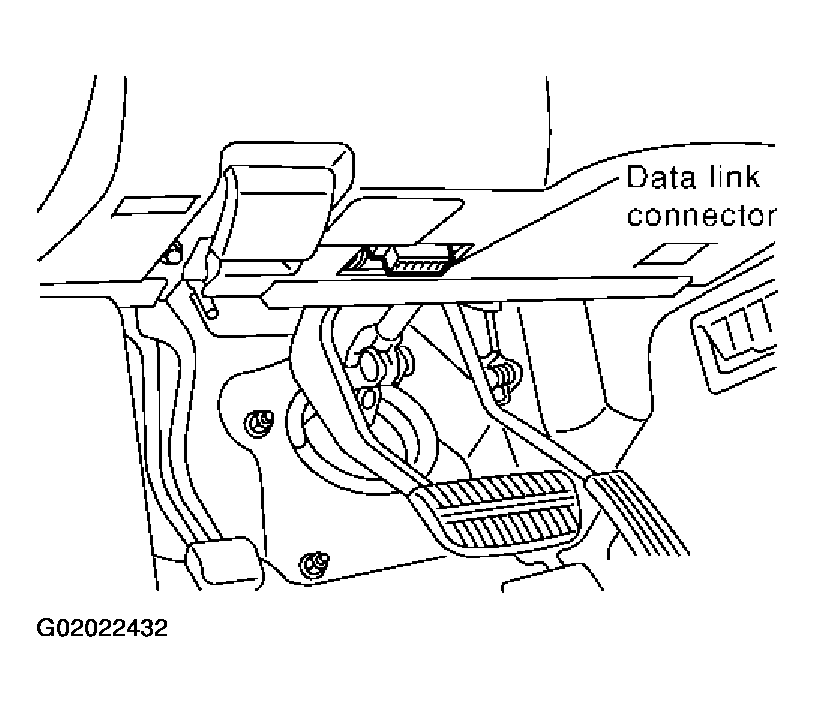

    Fig 1: Locating Data Link Connector
    G02022432Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START (NISSAN BASED VHCL)"

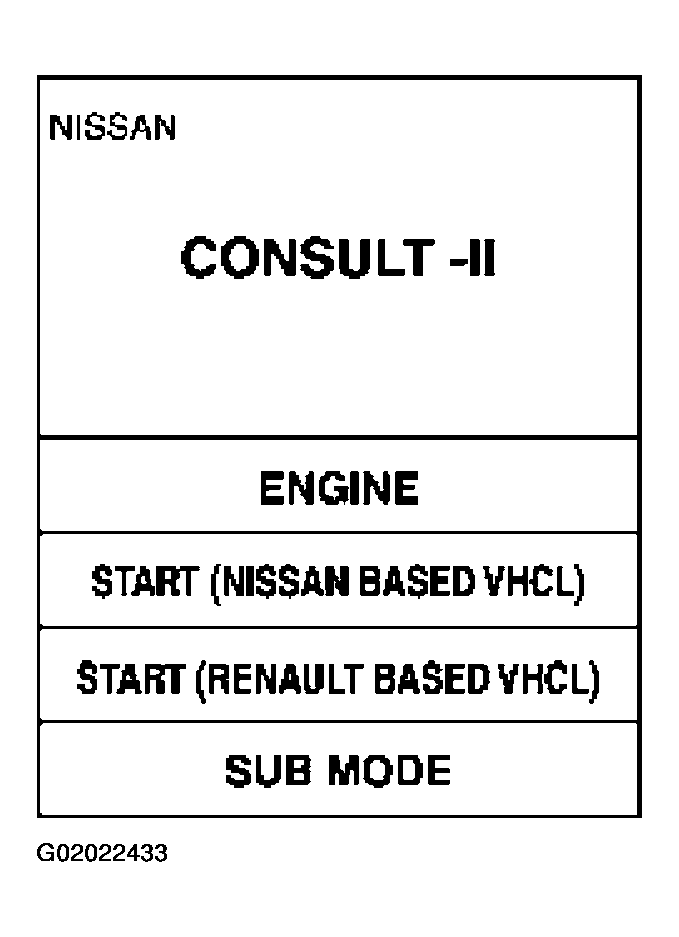

    Fig 2: Display Procedure 2 (With Consult-II) START MENU
    G02022433Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "IVMS" If "IVMS" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

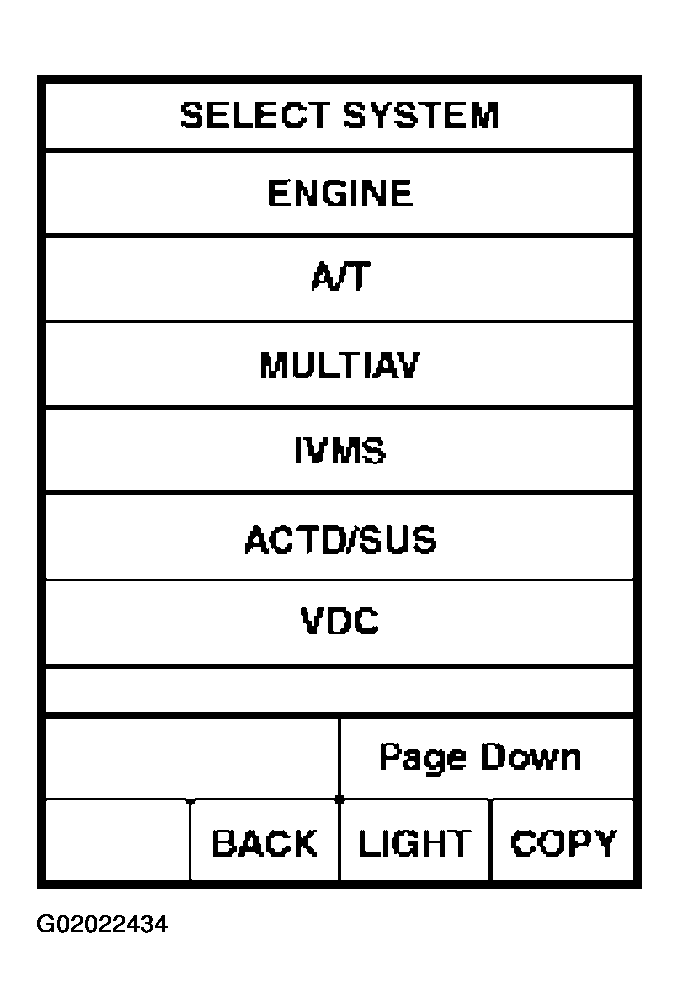

    Fig 3: Display Procedure 2 (With Consult-II) - Selecting IVMS
    G02022434Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".
  7. Touch "OK". If the selection is wrong, touch "CANCEL".

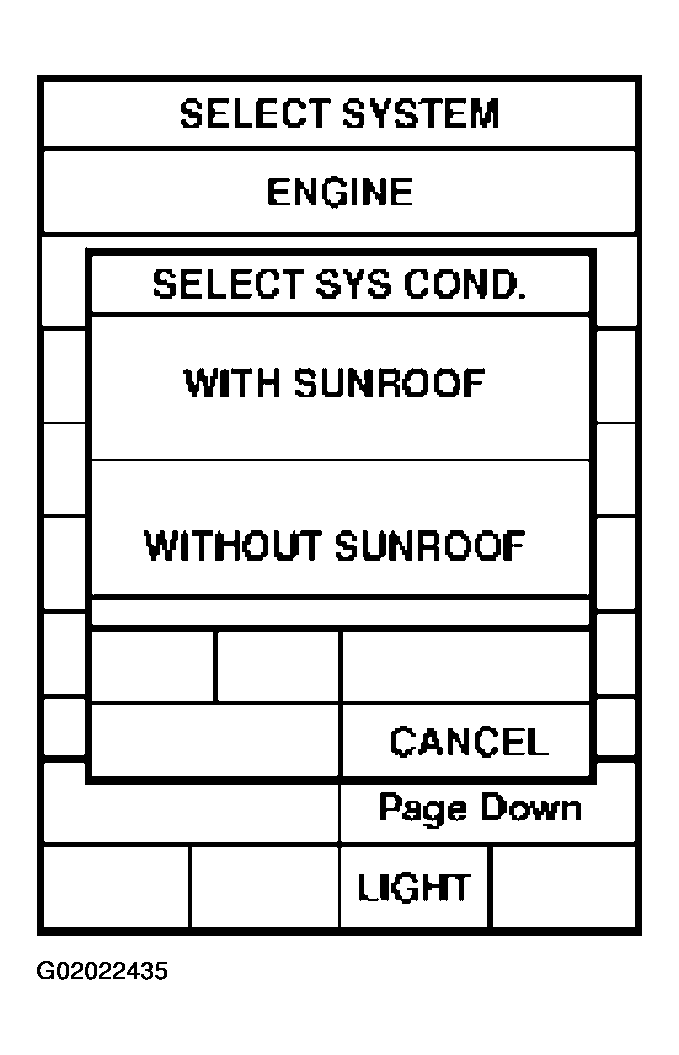

    Fig 4: Display Select System Sheet With Consult-II - WITH SUNROOF or WITHOUT SUNROOF
    G02022435Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Touch "MULTI-REMOTE CONT SYS".

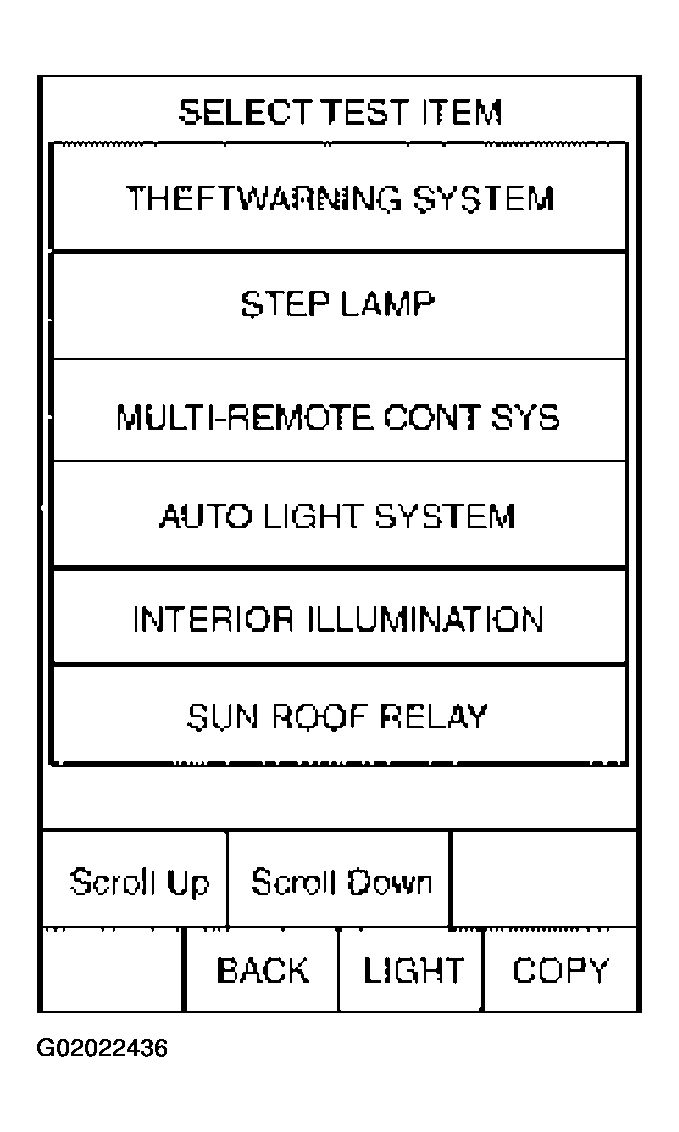

    Fig 5: Display Select System Sheet With Consult-II - MULTI-REMOTE CONT SYS
    G02022436Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "WORK SUPPORT".

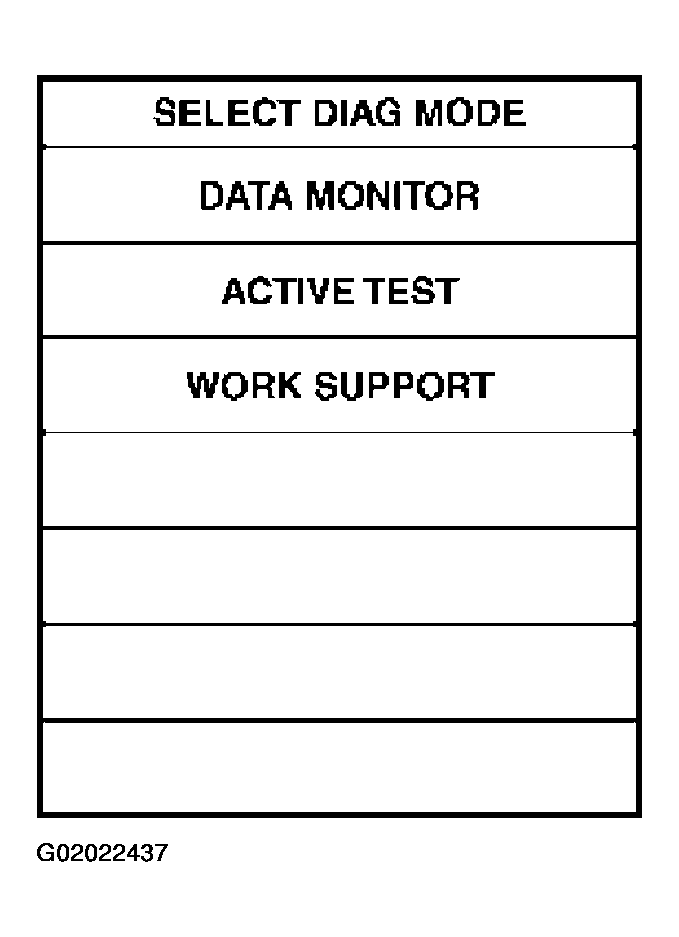

    Fig 6: Display Select System Sheet With Consult-II - WORK SUPPORT
    G02022437Courtesy of NISSAN MOTOR CO., U.S.A.
  10. The item shown on the figure at right can be set up.
  • "REMO CONT ID CONFIR" Use this mode to confirm if a electronic key ID code is registered or not.
  • "REMO CONT ID REG" Use this mode to register a electronic key ID code.
    NOTE: Register the ID code when electronic key or BCM is replaced, or when additional electronic key is required.
  • "REMO CONT ID ERASUR" Use this mode to erase a electronic key ID code.
