Check Trunk Lid Opener Cancel Switch
- CHECK POWER SUPPLY CIRCUIT
- Turn ignition switch OFF.
- Disconnect trunk lid opener cancel switch connector.

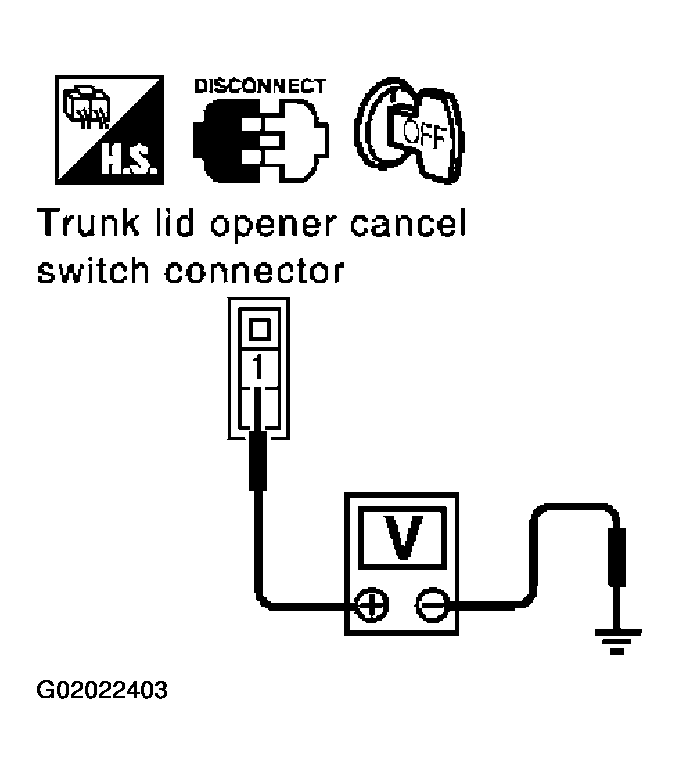

- Check voltage between trunk lid opener cancel switch connector M117 terminal 1 (G) and ground.
- 1 (G) - Ground :Battery voltage
OK or NG
OK >> GO TO 2.
NG >> Check the following.
- Trunk lid opener relay
- Harness for open or short between trunk lid opener cancel switch and trunk lid opener relay
- CANCEL SWITCH INSPECTION

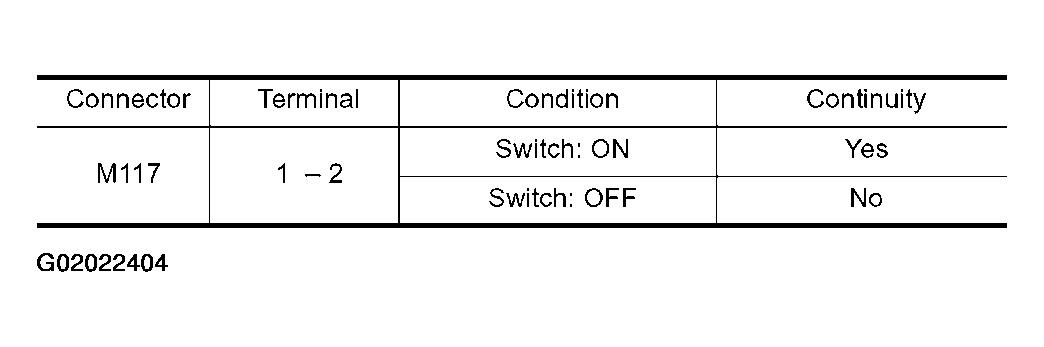

Check continuity between trunk lid opener cancel switch terminals 1 and 2.
