Check Key Switch
- CHECK KEY SWITCH
With CONSULT-II

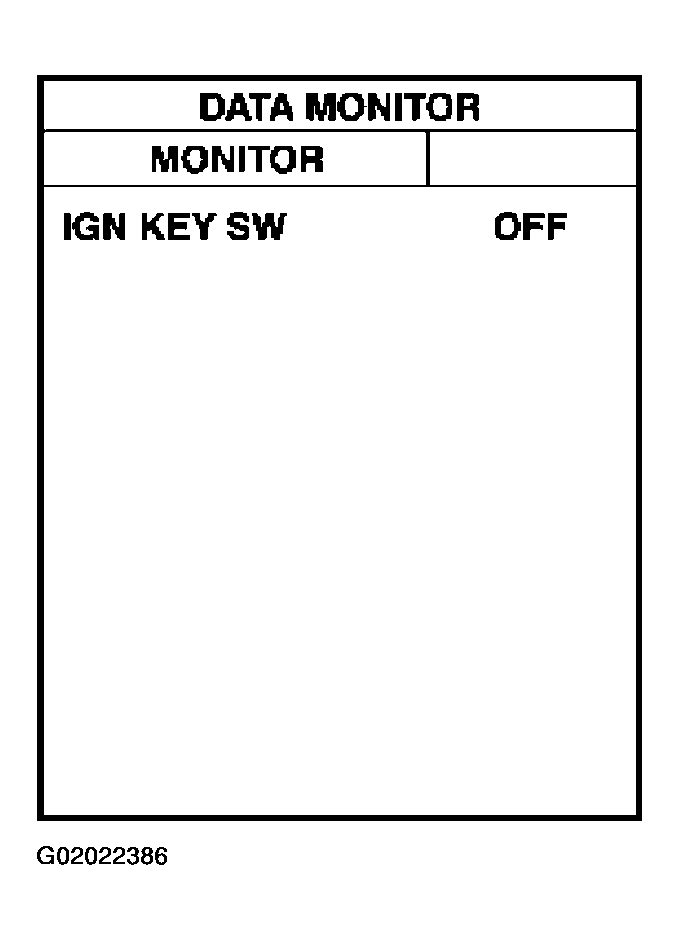

Check key switch "IGN KEY SW" in "DATA MONITOR" mode with CONSULT-II.
- Key is inserted in ignition key cylinder : IGN KEY SW ON
- Key is removed from ignition key cylinder : IGN KEY SW OFF
Without CONSULT-II

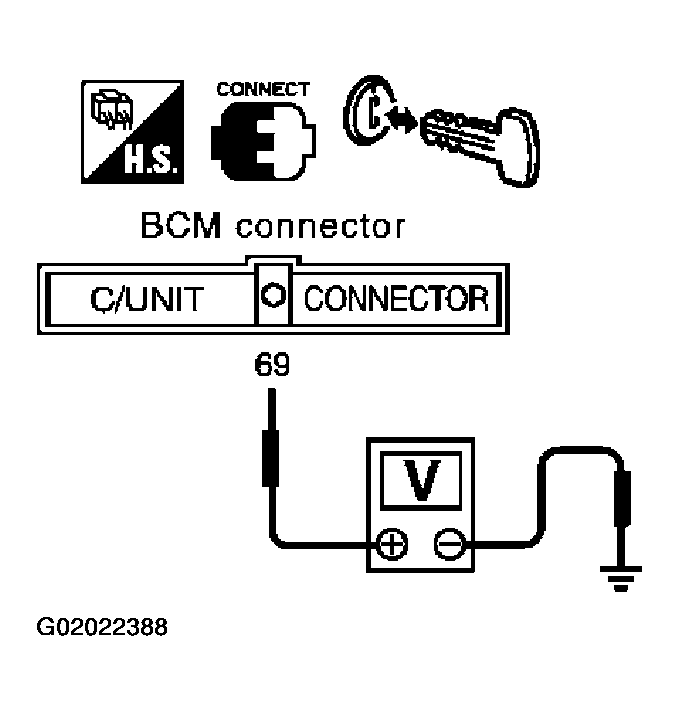

Check voltage between BCM connector and ground.
